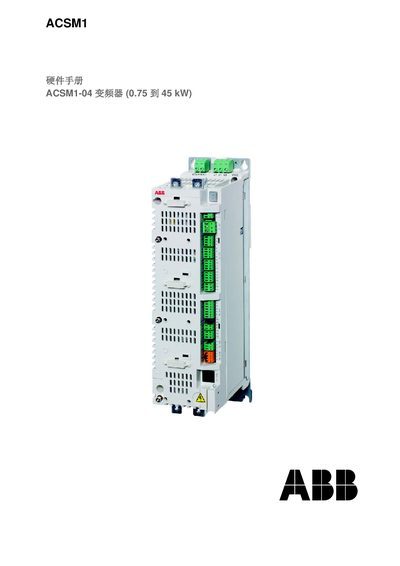

This manual introduces the safety precautions that must be observed when installing, commissioning and applying ACSM1 inverters.
This manual covers all safety requirements for installing, commissioning, and maintaining the ACSM1‑04 variable‑frequency drive. It emphasizes that only qualified electrical engineers may perform work, power must be removed, and voltages verified before any maintenance.
The document includes detailed sections on hardware layout, cabinet design, mechanical and electrical installation, cable selection, grounding, and protection features such as braking chopper, thermal overload, and safety‑torque interruption. Technical data, dimension drawings, and optional accessories are also provided. This manual is written in Chinese.
| Power rating | 0.75 to 45 kW |
|---|---|
| Supported voltage range | 380‑480 V AC |
| Maximum cable conductor temperature | ≥ 70 °C |
The ACSM1‑04 inverter is rated for 0.75 kW up to 45 kW.
No. Installing the inverter in a TN system may damage it.
