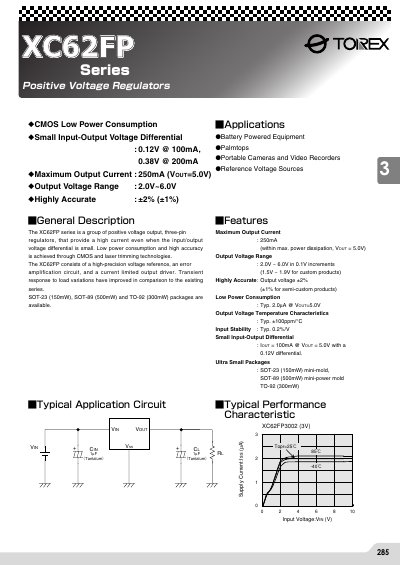

The XC62FP series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The XC62FP consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT-23 (150mW), SOT-89 (500mW) and TO-92 (300mW) packages are available. Maximum Output Current : 250mA (within max. power dissipation, VOUT = 5.0V) Output Voltage Range : 2.0V ~ 6.0V in 0.1V increments (1.5V ~ 1.9V for custom products) Highly Accurate: Output voltage ±2% (±1% for semi-custom products) Low Power Consumption : Typ. 2.0µA @ VOUT=5.0V Output Voltage Temperature Characteristics : Typ. ±100ppm/°C Input Stability : Typ. 0.2%/V Small Input-Output Differential : IOUT = 100mA @ VOUT = 5.0V with a 0.12V differential. Ultra Small Packages : SOT-23 (150mW) mini-mold, SOT-89 (500mW) mini-power mold TO-92 (300mW) GBattery Powered Equipment GPalmtops GPortable Cameras and Video Recorders GReference Voltage Sources NCMOS Low Power Consumption NSmall Input-Output Voltage Differential : 0.12V @ 100mA, 0.38V @ 200mA NMaximum Output Current : 250mA (VOUT=5.0V) NOutput Voltage Range : 2.0V~6.0V NHighly Accurate : ±2% (±1%)
The XC62FP series provides positive voltage output regulators with a small input‑output differential, low power consumption and high accuracy achieved through CMOS and laser‑trimming technologies. Features include up to 250 mA output current, output voltage range of 2.0 V to 6.0 V in 0.1 V steps, and typical accuracy of ±2% (±1% for semi‑custom parts).
Available in ultra‑small SOT‑23, SOT‑89 and TO‑92 packages, the devices are suited for battery‑powered equipment, palmtops, portable cameras, video recorders and reference voltage sources. Electrical characteristics such as input voltage range, temperature coefficient (+100 ppm/°C) and power dissipation are detailed in the datasheet, along with typical application circuits and load transient response graphs.
| Output Voltage Range | 2.0 V – 6.0 V |
|---|---|
| Maximum Output Current | 250 mA |
| Output Voltage Accuracy | ±2 % (±1 % semi‑custom) |
| Typical Power Consumption | 2.0 mA @ Vout=5.0 V |
| Temperature Coefficient | +100 ppm/°C |
| Input Voltage Range | 4 V – 10 V (typical) |
| Package Types | SOT‑23 (150 mW), SOT‑89 (500 mW), TO‑92 (300 mW) |
The XC62FP series can deliver up to 250 mA of output current.
It supports output voltages from 2.0 V to 6.0 V in 0.1 V increments.
The regulators are available in SOT‑23, SOT‑89 and TO‑92 packages.
