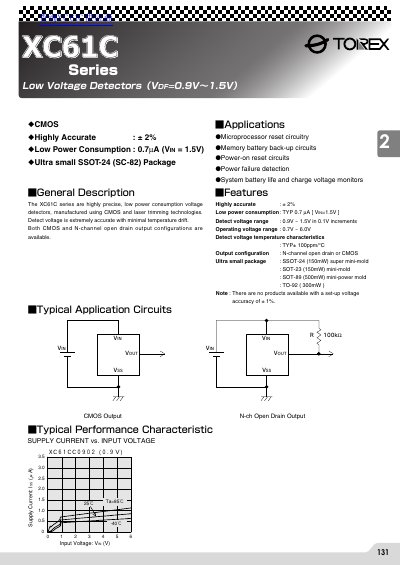

The XC61C series are highly precise, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-channel open drain output configurations are available.
The Torex XC61C series consists of highly precise, low power consumption voltage detectors manufactured using CMOS and laser trimming technologies. These devices are designed to detect input voltages ranging from 0.9V to 1.5V with minimal temperature drift, making them suitable for microprocessor reset circuitry, memory battery back-up circuits, and system monitoring applications.
The series offers both CMOS output and N-channel open drain output configurations in ultra-small packages including SSOT-24 (SC-82), SOT-23, SOT-89, and TO-92. Key features include a typical supply current of 0.7 pA at Vin=1.5V for CMOS outputs and high accuracy with temperature characteristics of TYP+ 100ppm/°C.
| Detect Voltage Range | 0.9V ~ 1.5V |
|---|---|
| Supply Current (CMOS) | TYP 0.7 pA |
| Operating Voltage Range | 0.7V ~ 6.0V |
| Detect Voltage Temperature Characteristics | TYP+ 100ppm/°C |
The typical supply current is 0.7 pA when Vin is 1.5V.
The document states that there are no products in this series with a setup voltage accuracy of + 1%.
