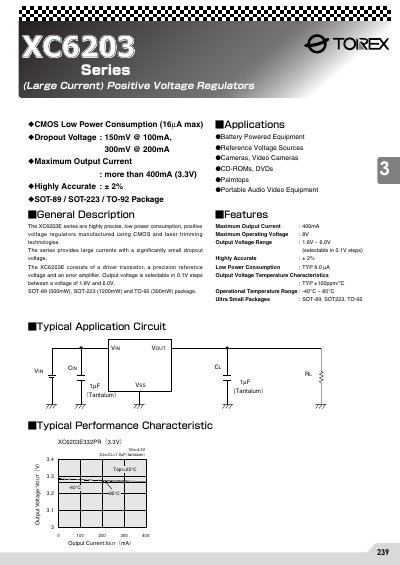

The XC6203E series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6203E consists of a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between a voltage of 1.8V and 6.0V. SOT-89 (500mW), SOT-223 (1200mW) and TO-92 (300mW) package.
The document describes the XC6203E series of highly precise, low power consumption positive voltage regulators manufactured using CMOS technology. These devices provide large currents with a significantly small dropout voltage and feature an output voltage selectable in 0.1V steps between 1.8V and 6.0V.
| Maximum Output Current | 400mA |
|---|---|
| Output Voltage Range | 1.8V ~ 6.0V |
| Voltage Accuracy | +/-2% |
| Dropout Voltage (100mA) | 150mV |
| Operating Temperature Range | -40°C ~ 85°C |
The series is available in SOT-89, SOT-223, and TO-92 packages.
The maximum operating input voltage (VIN) is 12V.
