This document introduces NS-10MM Natural Sound 2-way Acoustic-suspension Speaker System. Because this speaker is not a magnetic shielding type, there may be some influence on a TV picture depending on the type of TV or the placement of the speaker.

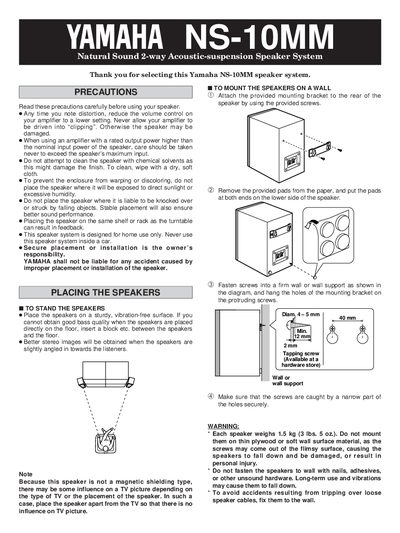

This document is the user manual for the Yamaha NS-10MM, a 2-way acoustic-suspension speaker system designed for home use. It covers essential safety precautions, such as avoiding amplifier clipping and proper placement to prevent damage or feedback. The guide details how to stand the speakers on a sturdy surface or mount them on a wall using the provided brackets, including specific warnings about wall thickness and screw types.
| Speaker Unit | 9 cm cone woofer, 2.5 cm tweeter |
|---|---|
| Frequency Response | 100 Hz — 20 kHz |
| Nominal Input Power | 40W |
| Maximum Input Power | 100W |
| Sensitivity | 88 dB/w/m |
| Crossover Frequency | 5 kHz |
| Dimensions (WxHxD) | 107 x 191 x 140 mm |
| Weight | 1.5 kg |
No, this speaker system is designed for home use only and should never be used inside a car.
Connect the side of the cable marked by a blue line to the (+) terminals and the unmarked side to the (-) terminals.
If one speaker is connected with reversed polarity, the sound will be unnatural and lack bass.
