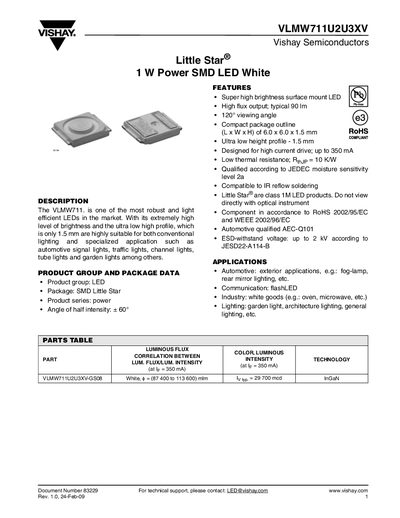

Vishay VLMW711U2U3XV White Power SMD LED Datasheet
The VLMW711U2U3XV is a 1.5 mm‑high Little Star® SMD LED offering very high brightness for applications such as automotive signal lights, traffic lights, garden lighting and other general lighting uses. It is RoHS‑compliant, moisture‑sensitive level 2a and qualified to AEC‑Q101 for automotive use.
Key electrical parameters include a forward current of 350 mA, forward voltage 3.3‑4 V, power dissipation 1.4 W and thermal resistance of 10 K/W. The package measures 6.0 × 6.0 × 1.5 mm. Recommended storage is 10 °C‑30 °C with humidity below 60 % RH, and devices must be baked if moisture is absorbed before reflow soldering.
Vishay VLMW711 specifications
| Forward current | 350 mA |
|---|---|
| Power dissipation | 1.4 W |
| Junction temperature | +120 °C |
| Operating temperature range | -40 °C to +100 °C |
| Thermal resistance (junction/pin) | 10 K/W |
| Viewing angle | 120° |
| Package dimensions (L×W×H) | 6.0 × 6.0 × 1.5 mm |
| ESD withstand voltage | up to 2 kV |
| Moisture sensitivity level | 2a |
