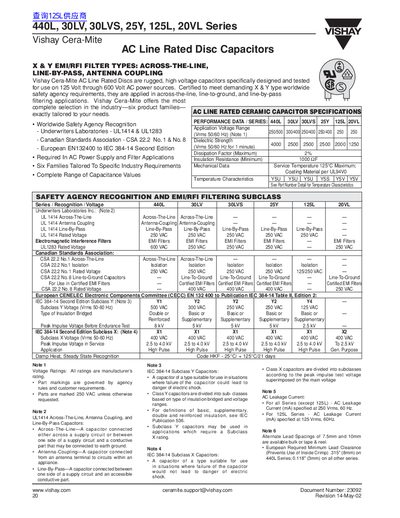

Vishay Cera-Mite 440L/30LV/30LVS/25Y/125L/20VL Series AC Line Rated Disc Capacitors Datasheet
This document details the specifications for Vishay Cera-Mite AC Line Rated Disc Capacitors, specifically the 440L, 30LV, 30LVS, 25Y, 125L, and 20VL series. These rugged, high-voltage capacitors are designed for use on 125 Volt through 600 Volt AC power sources in across-the-line, line-to-ground, and line-by-pass filtering applications.
Read onlineVishay 20-V specifications
| Rated DC Voltage | 63 V, 100 V, 250 V, 400 V, 630 V, 1000 V |
|---|---|
| Rated AC Voltage | 40 V, 63 V, 160 V, 200 V, 220 V |
| Capacitance Range | 1000 pF to 15 µF (E12 series) |
| Capacitance Tolerance | ±20 %, ±10 %, ±5 % |
| Maximum Application Temperature | 125 °C (continuous) |
| Reliability (Operational Life) | > 300 000 h at 40 °C/0.5 U_R |
