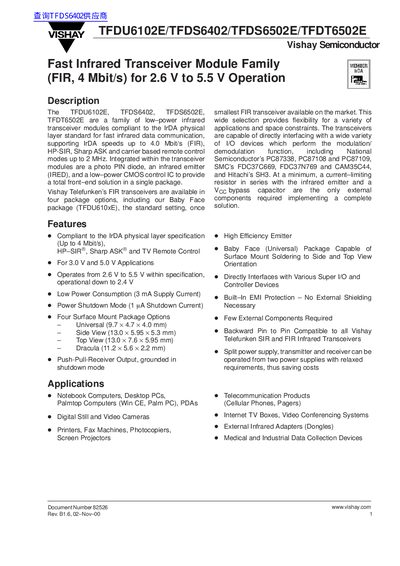

Vishay TFDU6102E/TFDS6402/TFDS6502E/TFDT6502E Fast Infrared Transceiver Module Datasheet
The document describes a family of low-power infrared transceiver modules (TFDU6102E, TFDS6402, TFDS6502E, TFDT6502E) designed for fast infrared data communication. These modules are compliant with the IrDA physical layer standard and support speeds up to 4.0 Mbit/s (FIR), as well as HP-SIR, Sharp ASK, and carrier-based remote control modes up to 2 MHz.
Read onlineVishay TFDU6102 specifications
| Supply Voltage Range | 2.6 V to 5.5 V |
|---|---|
| Maximum Data Rate | 4.0 Mbit/s |
| Supply Current (Receive) | 3 mA |
| Shutdown Current | 1 uA |
| Operating Temperature Range | -25 to +85 °C |
Source: Vishay TFDU6102E/TFDS6402/TFDS6502E/TFDT6502E Fast Infrared Transceiver Module Datasheet
All Vishay TFDU6102 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate supported?
The modules support IrDA speeds up to 4.0 Mbit/s.
From: Vishay TFDU6102E/TFDS6402/TFDS6502E/TFDT6502E Fast Infrared Transceiver Module Datasheet
What are the required external components?
A current-limiting resistor in series with the infrared emitter and a Vcc bypass capacitor.
From: Vishay TFDU6102E/TFDS6402/TFDS6502E/TFDT6502E Fast Infrared Transceiver Module Datasheet
What is the supply voltage range for the TFDU6102?
The TFDU6102 operates from 2.7 V to 5.5 V supply voltage.
From: Vishay TFDU6102 Fast Infrared Transceiver Module Handbook
What mode does the TFDU6102 use after power‑on?
After power‑on the TFDU6102 defaults to SIR (low‑speed) mode.
From: Vishay TFDU6102 Fast Infrared Transceiver Module Handbook
