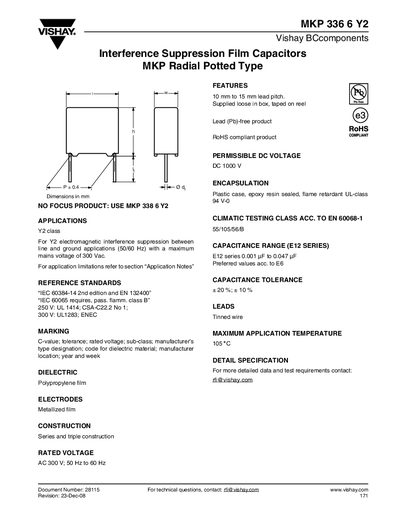

Vishay MKP 336 6 Y2 Interference Suppression Film Capacitor Datasheet
The MKP 336 6 Y2 is a radial potted film capacitor designed for Y2 class electromagnetic interference suppression between line and ground (50/60 Hz) with a maximum mains voltage of 300 Vac. It features a polypropylene dielectric, metallized film electrodes, and a plastic/epoxy encapsulation that meets UL‑class 94 V‑0 flame‑retardant requirements.
The document provides detailed specifications, mounting guidelines for PCB assembly, safety approvals (UL1414, UL1283, EN132400, etc.), and inspection requirements covering dimensions, capacitance, loss angle, and environmental testing.
Vishay MKP 336 6 Y2 specifications
| Rated AC Voltage | 300 V, 50 Hz‑60 Hz |
|---|---|
| Permissible DC Voltage | 1000 V |
| Capacitance Tolerance | +20 % / +10 % |
| Lead Pitch | 10 mm or 15 mm |
| Maximum Application Temperature | 105 °C |
| Dielectric Material | Polypropylene film |
| Encapsulation | Plastic case, epoxy resin sealed, UL‑class 94 V‑0 |
