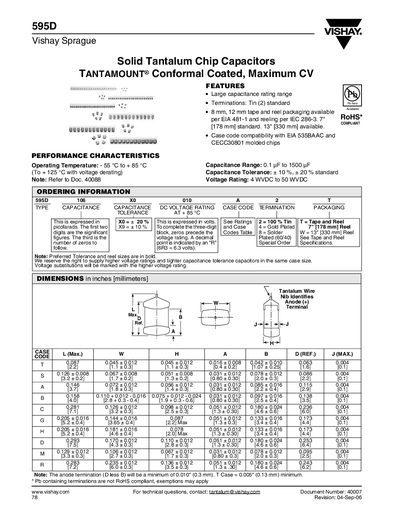

Vishay 595D Solid Tantalum Chip Capacitors Datasheet
The 595D series from Vishay Sprague offers solid tantalum chip capacitors with TANTAMOUNT® conformal coating. These components feature a wide capacitance range, multiple voltage ratings, and RoHS‑compliant, lead‑free construction.
The datasheet lists performance characteristics such as operating temperature, capacitance tolerance, and case‑code compatibility, as well as ordering information including tape‑and‑reel packaging options. Standard and extended ratings are provided for various voltage and temperature conditions, and typical impedance curves are included for design reference.
Vishay 595D specifications
| Capacitance range | 0.1 µF to 1500 µF |
|---|---|
| Voltage rating | 4 V to 50 V |
| Capacitance tolerance | ±10 % (standard) or ±20 % (standard) |
| Termination type | Tin (2) standard |
| Packaging | 8 mm and 12 mm tape‑and‑reel (EIA 481‑1) |
| Operating temperature | ‑55 °C to +85 °C (‑55 °C to +125 °C with voltage derating) |
All Vishay 595D documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the capacitance range of the 595D capacitors?
The 595D series covers capacitance values from 0.1 µF up to 1500 µF.
What voltage ratings are offered for the 595D series?
Voltage ratings are available from 4 V up to 50 V.
