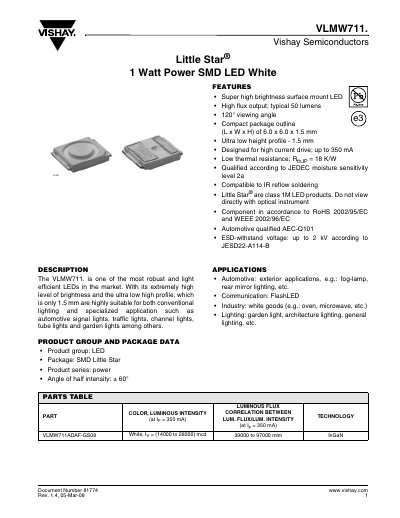

The VLMW711 is a high‑brightness, low‑profile 1 W white surface‑mount LED designed for both general lighting and specialized applications such as automotive signal lights, traffic lights, and garden lighting. It offers a compact 6.0 × 6.0 × 1.5 mm package, 120° viewing angle, and can be driven up to 350 mA.
Key electrical parameters include a forward voltage of 3.0‑4.0 V at 350 mA, power dissipation of 1.4 W, and a thermal resistance of 18 K/W. The device complies with RoHS, WEEE, and automotive AEC‑Q101 standards, and requires careful moisture‑sensitive handling with recommended dry‑box storage and baking procedures before reflow soldering.
| Typical luminous flux | 50 lm |
|---|---|
| Viewing angle | 120° |
| Package size | 6.0 x 6.0 x 1.5 mm |
| Forward current (IF) | 350 mA |
| Power dissipation (Ptot) | 1.4 W |
| Thermal resistance (RthJP) | 18 K/W |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
| ESD withstand voltage | up to 2 kV |
| Automotive qualification | AEC‑Q101 |
The VLMW711 typically produces about 50 lumens of light.
The device is designed for a forward current of up to 350 mA.
Yes, it is automotive qualified to the AEC‑Q101 standard.
