VLMW711T3U2US 1 W Power SMD LED White is a super high brightness surface mount LED produced by Vishay Semiconductors. It features high flux output, 120° viewing angle, low thermal resistance and ultra low height, suitable for automotive signal lights, traffic lights, channel lights, tube lights and garden lights etc.
The VLMW711T3U2US is a high‑brightness, ultra‑low‑profile 1 W power SMD LED in a compact 6 × 6 × 1.5 mm package. It delivers typical luminous flux of 80‑85 lm, a 120° viewing angle, and can be driven up to 350 mA with low thermal resistance (10 K/W). The device is RoHS‑compliant, AEC‑Q101 qualified, and suitable for automotive, lighting and industrial applications.

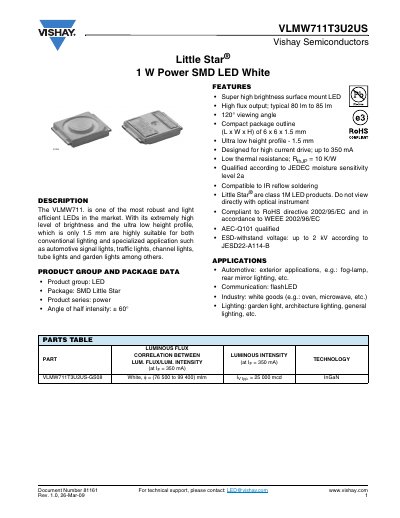

The datasheet lists absolute maximum ratings, electrical and optical characteristics, packaging dimensions, and recommended storage and handling procedures. It also includes bar‑code labeling, moisture‑sensitivity information, and legal disclaimer for non‑medical use.
| Luminous flux (typical) | 80–85 lm |
|---|---|
| Viewing angle | 120° |
| Package size | 6 × 6 × 1.5 mm |
| Forward current (IF) | 350 mA |
| Power dissipation (Ptot) | 1.4 W |
| Thermal resistance (RthJP) | 10 K/W |
| Forward voltage (typical) | 3.54 V |
The device is designed for a forward current of up to 350 mA.
Store the sealed reel in a dry box at 10 °C to 30 °C with humidity ≤ 60 % RH.
Typical luminous flux is between 80 lm and 85 lm.
The package measures 6 mm × 6 mm × 1.5 mm.
