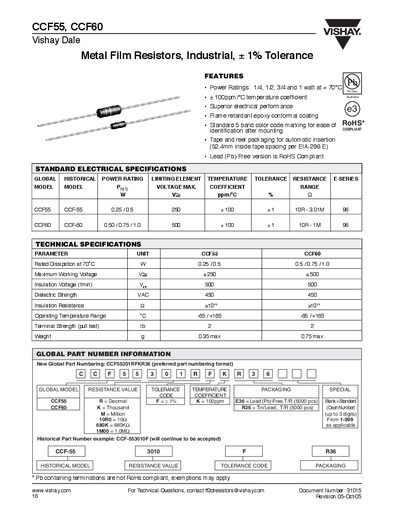

Vishay CCF55 CCF60 Metal Film Resistor Datasheet
The CCF55 and CCF60 series are industrial‑grade metal‑film resistors offering 1% tolerance and a range of power ratings from ¼ W to 1 W at +70 °C. They feature a flame‑retardant epoxy coating, standard 5‑band color code marking and RoHS‑compliant, lead‑free versions.
The document provides detailed electrical specifications, dimensional drawings, resistance value tables, and performance test results. It also lists part numbering, packaging options, and contact information for technical support.
Vishay CCF55 specifications
| Power Rating | ¼ W, ½ W, ¾ W, 1 W |
|---|---|
| Temperature Coefficient | 100 ppm/°C |
| Maximum Working Voltage | 250 V (CCF55), 500 V (CCF60) |
| Operating Temperature Range | -65 °C to +165 °C |
| Packaging | Tape and reel for automatic insertion |
All Vishay CCF55 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the tolerance of the CCF55 and CCF60 resistors?
Both series have a tolerance of ±1 %.
Are the resistors RoHS compliant?
Yes, a lead‑free version is RoHS compliant.
What are the power ratings for the CCF55 and CCF60 resistors?
CCF55 is rated 1/4 W or 1/2 W, while CCF60 is rated 1/2 W, 3/4 W, and 1 W at +70 °C.
What is the temperature coefficient of these resistors?
The temperature coefficient is 100 ppm/°C.
