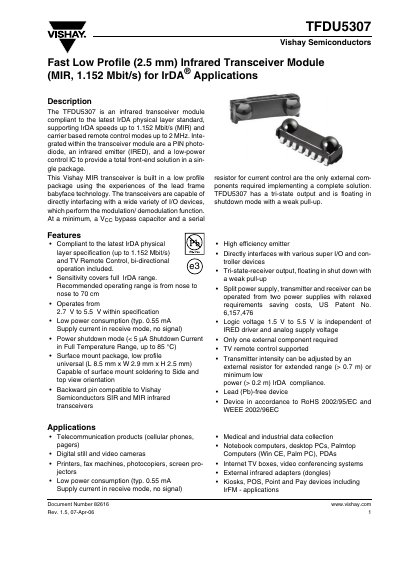

VISHAY TFDU5037 DATA SHEET
The TFDU5307 infrared transceiver module complies with the latest IrDA physical‑layer specification (MIR, up to 1.152 Mbit/s) and includes a PIN photodiode, an infrared emitter (IRED) and a low‑power control IC in a single low‑profile package. It operates from 2.7 V to 5.5 V and requires only a supply‑bypass capacitor and a series resistor for current limiting.
Typical applications include cellular phones, digital cameras, printers, fax machines, PDAs, video‑conferencing systems and external infrared adapters. The device offers a tri‑state output, shutdown mode with <5 µA current, and programmable pulse‑duration modes for compatibility with SIR and ENDEC receivers.
Vishay TFDU5307 specifications
| Supply voltage range (VCC1/VCC2) | 2.7 V – 5.5 V |
|---|---|
| Receive‑mode supply current | 0.55 mA typ |
| Shutdown supply current | < 5 µA |
| Package dimensions (L × W × H) | 8.5 mm × 2.9 mm × 2.5 mm |
Source: VISHAY TFDU5037 DATA SHEET
All Vishay TFDU5307 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What external components are required to operate the TFDU5307?
Only a supply‑bypass capacitor and a series resistor for the IRED current are needed; additional filtering components are optional depending on the power‑supply quality.
Is the TFDU5307 RoHS compliant?
Yes, the device is lead‑free and conforms to RoHS 2002/95/EC and WEEE 2002/96EC directives.
What external components are required for the TFDU5307?
Only a series current‑limiting resistor and a bypass capacitor are needed; additional filtering components are optional depending on the power‑supply quality.
What is the recommended supply voltage range for the module?
The TFDU5307 operates with VCC1 (and VCC2) between 2.7 V and 5.5 V.
