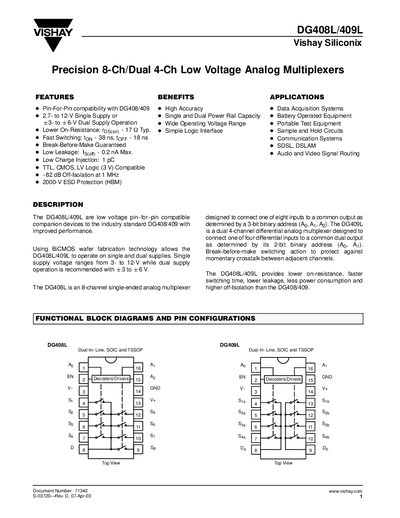

Vishay DG408L/409L Analog Multiplexer Datasheet
The DG408L/409L family provides precision analog switching for data‑acquisition, portable test equipment, and communication systems. They are pin‑for‑pin compatible with the DG408/409 series but offer lower on‑resistance, faster switching times, reduced leakage, and higher off‑isolation. Both single‑supply (2.7 V‑12 V) and dual‑supply (+3 V‑+6 V) operation are supported.
Typical applications include sample‑and‑hold circuits, battery‑operated devices, and audio/video signal routing. The datasheet includes functional block diagrams, pin configurations, truth tables, ordering information, absolute maximum ratings, and extensive electrical specifications for various supply conditions.
Vishay DG408 specifications
| On‑Resistance (R_on) typical | 17 mΩ |
|---|---|
| Turn‑on time (t_on) typical | 38 ns |
| Leakage current (I_leak) max | 0.2 nA |
| ESD protection | 2000 V HBM |
| Supply voltage range | 2.7‑12 V single, +3‑+6 V dual |
| Charge injection | 1 pC |
All Vishay DG408 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical on‑resistance of the DG408L/409L devices?
The typical on‑resistance is about 17 mΩ.
How fast do the DG408L/409L switches operate?
Turn‑on time is typically 38 ns and turn‑off time 18 ns.
What is the maximum supply voltage rating for the DG408/DG409?
The devices are rated for a maximum supply voltage of 44 V.
How many channels does the DG408 provide?
The DG408 provides eight single‑ended channels that can be selected via a 3‑bit address.
