Start here

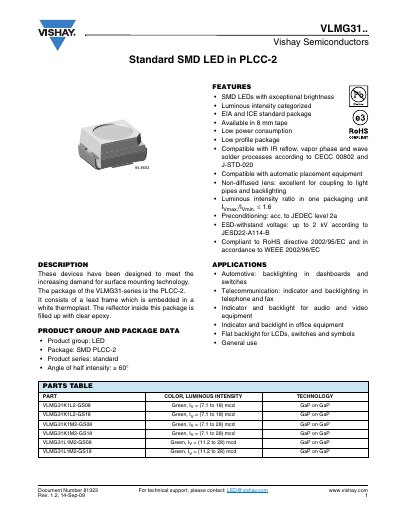

VISHAY - VLMG31Vishay Semiconductors handbook
The VLMG31 series are standard SMD LEDs in a PLCC‑2 package, offering high brightness, low power consumption, and a low‑profile design. The document lists the product’s features, applications such as automotive backlighting, telecommunications indicators, and audio‑video equipment, and provides part numbers for various green intensity and wavelength groups.
Technical data include absolute maximum ratings, optical and electrical characteristics, package dimensions, and recommended storage and handling procedures. Detailed information on tape and reel packaging, soldering profiles, and bar‑code labeling is also provided to aid manufacturers and assemblers.
Vishay VLMG31.. specifications
| Package | PLCC‑2 SMD |
|---|---|
| Forward voltage (typical, 20 mA) | 2.2 V – 2.8 V |
| Reverse voltage | 6 V |
| Power dissipation | 100 mW |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
| RoHS compliance | Yes |
All Vishay VLMG31.. documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended storage temperature and humidity for VLMG31 LEDs?
Store the devices at 10 °C to 30 °C with humidity ≤ 60 % RH; longer storage may cause moisture absorption.
What forward voltage can be expected at 20 mA?
The typical forward voltage is between 2.2 V and 2.8 V at 20 mA.
What is the maximum reverse voltage for the VLMG31 LEDs?
The maximum reverse voltage is 6 V DC.
What storage conditions are recommended for the VLMG31 LEDs?
Store the devices at 10 °C to 30 °C with a humidity of 60 % RH or less.
