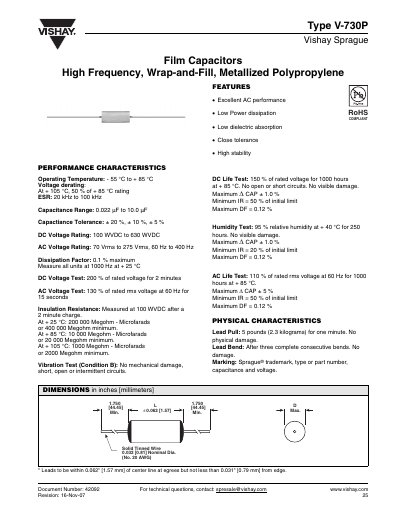

Vishay V-730P Film Capacitor Datasheet
The V-730P series from Vishay Sprague provides high‑frequency, wrap‑and‑fill, metallized polypropylene film capacitors. The document lists performance characteristics, physical dimensions, standard ratings, and ordering information for capacitance values from 0.022 µF to 10 µF.
Key features include excellent AC performance, low power dissipation, low dielectric absorption, close tolerance, and high stability. Test conditions, voltage derating, and environmental limits are also specified. This manual is written in Chinese.
Vishay 730P specifications
| Operating Temperature | -55 °C to +85 °C |
|---|---|
| DC Voltage Rating | 100 WVDC to 630 WVDC |
| AC Voltage rating | 70 Vrms to 275 Vrms (60 Hz‑400 Hz) |
| Capacitance Range | 0.022 µF to 10.0 µF |
| Dissipation Factor | 0.1 % max |
| Voltage Derating @ +105 °C | 50 % of +85 °C rating |
| Peak Current Pulse Capability | 10 A/µF |
| Maximum Rate Voltage Change | 10 V/µs |
