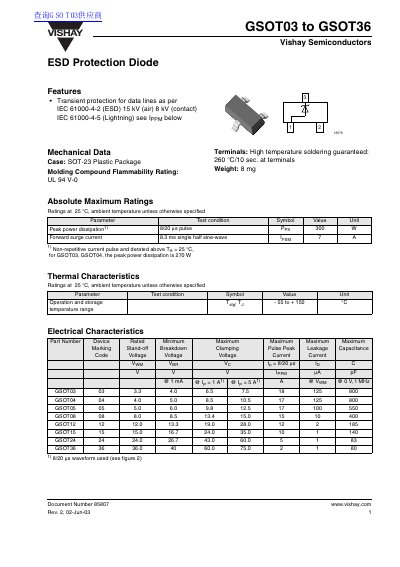

Vishay YGSOT03 to GSOT36 ESD Protection Diode Datasheet
This datasheet details the electrical and mechanical characteristics of Vishay’s YGSOT03 to GSOT36 ESD protection diodes. It includes absolute maximum ratings, thermal data, and typical performance curves. The devices are packaged in SOT-23 plastic with UL 94 V-0 flammability rating and are designed for transient protection against ESD and lightning. Each model has specific voltage and current ratings, with peak power dissipation up to 300 W for 8/20 µs pulses.
Read onlineVishay GSOT03 specifications
| Peak Power Dissipation | 300 W |
|---|---|
| Forward Surge Current | 7 A |
| Operation and Storage Temperature Range | -55 to +150 °C |
| Case Package | SOT-23 Plastic |
| Flammability Rating | UL 94 V-0 |
Source: Vishay YGSOT03 to GSOT36 ESD Protection Diode Datasheet
All Vishay GSOT03 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the peak power dissipation for these diodes?
300 W for 8/20 µs pulse.
From: Vishay YGSOT03 to GSOT36 ESD Protection Diode Datasheet
What is the operating temperature range?
-55 to +150 °C.
From: Vishay YGSOT03 to GSOT36 ESD Protection Diode Datasheet
How many signal lines can each device protect?
Each device protects a single line.
From: Vishay GSOT03‑GSOT36 Single-Line ESD-Protection Datasheet
What is the operating temperature range?
The devices operate from –40 °C to +125 °C.
From: Vishay GSOT03‑GSOT36 Single-Line ESD-Protection Datasheet
