MKP 336 6 Y2 Vishay BCcomponents is a Y2 class interference suppression film capacitor for Y2 electromagnetic interference suppression in across the line applications (50/60 Hz) with a maximum mains voltage of 250 Vac.
The MKP 336 6 Y2 series from Vishay BCcomponents provides interference suppression film capacitors for Y2 class applications, suitable for 50/60 Hz line use with a maximum mains voltage of 250 Vac. These capacitors feature a polypropylene dielectric, metallized film electrodes, and a flame‑retardant epoxy resin sealed case.

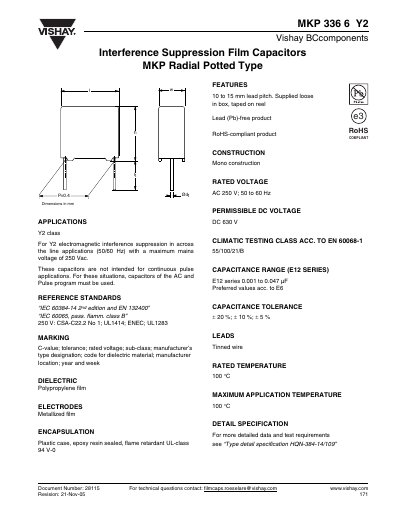

The document lists detailed electrical specifications, mechanical dimensions, lead configurations, and regulatory approvals. It also notes RoHS compliance and provides packaging options such as loose‑in‑box or taped‑on‑reel.
| Rated AC Voltage | 250 V (50‑60 Hz) |
|---|---|
| Permissible DC Voltage | 630 V |
| Rated Temperature | 100 °C |
| Capacitance Tolerance | ±20 %, ±10 %, ±5 % |
| Lead Pitch | 10 mm to 15 mm |
| RoHS Compliance | Lead‑free, RoHS‑compliant |
The rated AC voltage is 250 V at 50‑60 Hz.
Yes, it is a lead‑free, RoHS‑compliant product.
The permissible DC voltage is 630 V.
They are intended for Y2 electromagnetic interference suppression in across‑the‑line applications (50/60 Hz) with a maximum mains voltage of 250 Vac.
