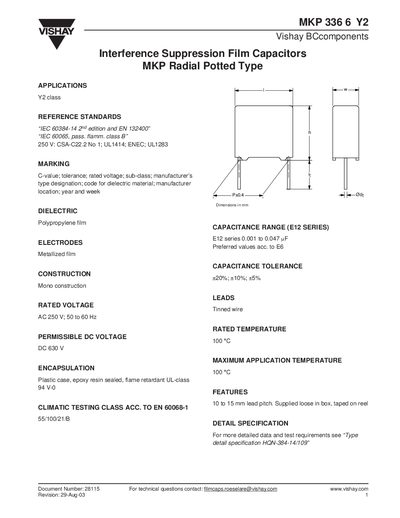

This document describes the features and characteristics of the MKP 336 6 Y2 interference suppression film capacitors from Vishay BCcomponents. It includes the application of Y2 class, detailed specifications of materials, electrodes, and encapsulation, as well as rated voltage and capacitance range.
The MKP 336 6 Y2 is an interference suppression film capacitor from Vishay BCcomponents. It features a polypropylene film dielectric, metallized film electrodes, and a mono construction in a plastic epoxy resin case rated for flame retardancy (UL‑class 94 V‑0).
The capacitor is rated for 250 V AC (50‑60 Hz) and 630 V DC, with a temperature rating of 100 °C. It is offered in E12 series values from 0.001 µF to 0.047 µF with tolerances of +20 %, +10 % and 5 %. Approvals include UL1414, UL1283, CSA‑C22.2, EN132400, IEC 60384‑14, and other regional certifications.
| Rated Voltage (AC) | 250 V; 50‑60 Hz |
|---|---|
| Permissible DC Voltage | 630 V |
| Rated Temperature | 100 °C |
| Maximum Application Temperature | 100 °C |
| Dielectric Material | Polypropylene film |
| Electrode Type | Metallized film |
| Encapsulation | Plastic case, epoxy resin sealed, flame retardant UL‑class 94 V‑0 |
| Capacitance Range (E12 series) | 0.001 µF to 0.047 µF |
| Capacitance Tolerance | +20 %; +10 %; 5 % |
| Lead Pitch | 10.0 mm |
The capacitor is rated for 250 V AC at 50‑60 Hz.
It has a rated temperature of 100 °C and a maximum application temperature of 100 °C.
