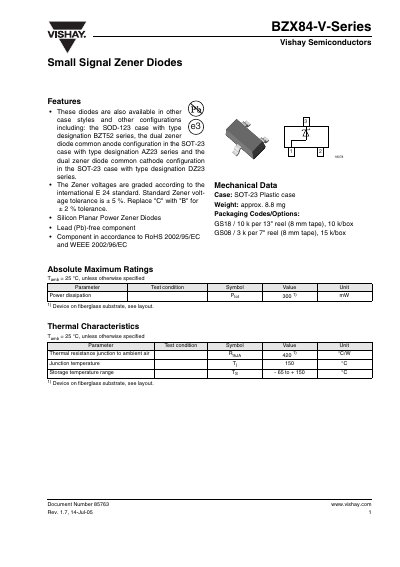

Vishay BZX84-V Series Small Signal Zener Diodes Datasheet
The document describes the BZX84-V-Series Small Signal Zener Diodes manufactured by Vishay Semiconductors. These diodes are available in the SOT-23 Plastic case and are lead (Pb)-free and RoHS compliant.
It provides absolute maximum ratings, electrical characteristics for various Zener voltages, and typical performance curves including forward characteristics, power dissipation, and thermal resistance.
Vishay BZX84-V-Series specifications
| Power dissipation (Ptot) | 300 mW |
|---|---|
| Thermal resistance (RthJA) | 420 °C/W |
| Maximum junction temperature (Tj) | 150 °C |
| Storage temperature range (TS) | -65 °C to +150 °C |
| Lead‑free (Pb‑free) | Yes |
| Package dimensions (mm) | 2.0 × 0.9 × 0.95 (example) |
All Vishay BZX84-V-Series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the case style?
SOT-23 Plastic case.
From: Vishay BZX84-V Series Small Signal Zener Diodes Datasheet
Is the component RoHS compliant?
Yes, it is in accordance to RoHS 2002/95/EC.
From: Vishay BZX84-V Series Small Signal Zener Diodes Datasheet
What is the Zener voltage tolerance for the BZX84‑V series?
The standard Zener voltage tolerance is ±5 %; a ±2 % version is available by using the “B” tolerance code.
What is the maximum power dissipation rating?
Each diode can dissipate up to 300 mW under the specified test conditions.
