Key facts
- Brand
- Vishay
- Model
- 4N25
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-11
Start here

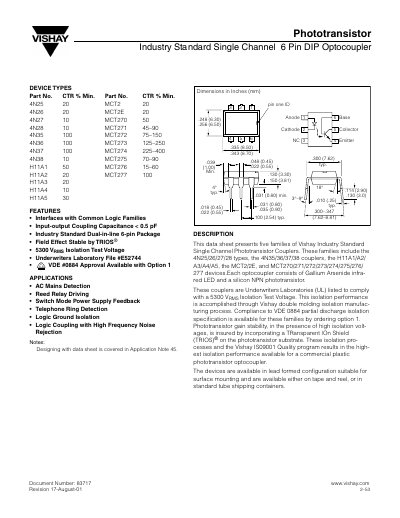

Vishay Phototransistor Optocoupler Datasheet
Datasheet 7 pages · 416 KB · EN
This document is a technical datasheet presenting five families of Vishay Industry Standard Single Channel Phototransistor Couplers. The included families are the 4N25/26/27/28 types, the 4N35/36/37/38 couplers, the H11A1/A2/A3/A4/A5 series, and the MCT2/MCT2E and MCT270-277 devices. Each optocoupler consists of a Gallium Arsenide infrared LED and a silicon NPN phototransistor.
Read onlineVishay 4N25 specifications
| Forward Current (Emitter) | 60 mA |
|---|---|
| Surge Current | 25A |
| Isolation Test Voltage | 5300 Vrms |
| Operating Temperature Range | -55°C to +100°C |
All Vishay 4N25 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Other documents 1
Questions answered in these manuals
What is the maximum forward current for the emitter?
The maximum forward current for the emitter is 60 mA.
What is the maximum operating temperature for these devices?
The maximum operating temperature is +100°C.
