Start here

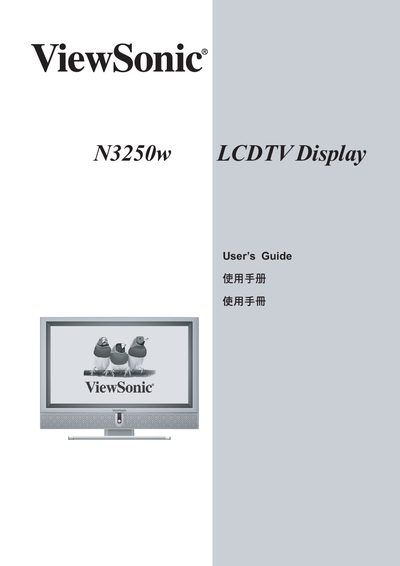

ViewSonic N3250w LCD TV User Manual
This guide covers all aspects of using the ViewSonic N3250w LCD TV, including important safety notices, antenna installation, cleaning procedures, remote‑control functions, and detailed menu navigation. It also lists the supplied accessories and shows front‑ and rear‑view diagrams of the unit.
Technical specifications, troubleshooting tips, customer‑support contacts, and warranty terms are provided toward the end of the document, helping users maintain and service the television throughout its life cycle. This manual is written in Chinese.
ViewSonic N3250w specifications
| LCD Panel | 32" TFT |
|---|---|
| Power Management (Off Mode) | <5W |
| Maximum Resolution | VESA 1280x1024 |
| Color Depth | 16.7M colors (8‑bit) |
| Contrast Ratio | 800:1 (typical) |
| Brightness | 500 cd/m² (typical) |
| Response Time | 8 ms (typical) |
| Operating Voltage | 100–240 V |
| Maximum Power Consumption | 200 W |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | -20 °C to +60 °C |
Source: ViewSonic N3250w-G VS10769-1G 32 LCD TV Display Service Manual
All ViewSonic N3250w documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which service tools are required for repairing the N3250w-G?
Required tools include a signal generator, multimeter, oscilloscope, screw driver, iron, absorber, solder, dummy load (5 A/200 W), and a DVD player.
From: ViewSonic N3250w-G VS10769-1G 32 LCD TV Display Service Manual
What is the maximum power consumption of the N3250w-G during operation?
The unit consumes up to 200 W at maximum load.
From: ViewSonic N3250w-G VS10769-1G 32 LCD TV Display Service Manual
What safety precautions should be taken before repairing the LCD TV?
The unit must not be opened by unqualified persons; use only the supplied power adapter, unplug before cleaning, and have a qualified technician perform repairs.
From: ViewSonic N3250w VS10769-1M LCD TV Display Service Manual
What is the recommended input voltage for the display?
The display operates on an input voltage range of 100 to 240 V.
From: ViewSonic N3250w VS10769-1M LCD TV Display Service Manual
How should I clean the screen of the ViewSonic N3250w LCD TV?
Turn the TV off, then wipe the screen with a clean, lint‑free dry cloth. For stubborn dirt, lightly dampen the cloth with a non‑ammonia, non‑alcohol glass cleaner. Do not spray liquids directly onto the screen.
What can I do if the TV has no power?
Make sure the power button and the rear power switch are turned on, the AC power cord is securely connected, and the outlet is supplying voltage.
