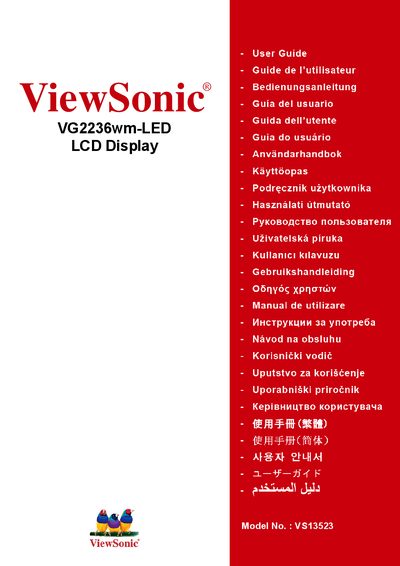

ViewSonic VG2236wm-LED LCD Display User Manual
This manual provides step‑by‑step instructions for installing and operating the ViewSonic VG2236wm‑LED LCD display. It includes safety warnings, quick‑start wiring, and detailed usage tips.
Additional sections cover technical specifications, cleaning procedures, RoHS and FCC compliance, and warranty information to help users maintain the monitor safely and efficiently. This manual is written in Chinese.
ViewSonic VG2236WM-LED specifications
| Screen size | 22" (21.5" viewable) |
|---|---|
| Native resolution | 1920x1080 |
| Contrast ratio (typical) | 1000:1 |
| Dynamic contrast ratio | 20,000,000:1 |
| Brightness | 250 cd/m² (typ) |
| Viewing angles | 170° horizontal, 160° vertical |
| Power consumption | 22W (typ) |
| Power input | AC 100-240V, 50/60Hz |
| Audio output | Speakers 2 W x 2 |
| VESA mount pattern | 100mm x 100mm |
All ViewSonic VG2236WM-LED documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the native resolution of the VG2236wm-LED display?
The monitor supports a native resolution of 1920 × 1080 at 60 Hz.
How should I clean the LCD screen?
Use a soft, dry cloth to gently wipe the screen; avoid abrasive materials.
What are the dimensions of the VG2236wm-LED monitor with the stand?
The monitor measures 20.52" × 16.48" × 9.42" (521.21 mm × 418.63 mm × 239.2 mm) with the stand attached.
What connectivity options does the VG2236wm-LED monitor support?
It provides an analog VGA 15‑pin mini D‑sub connector, a digital DVI‑D connector, and a 3.5 mm audio input.
What video input connections does the VG2236wm-LED monitor support?
It provides an analog VGA (15‑pin mini D‑sub) input and a digital DVI‑D input.
Does the VG2236wm-LED monitor have built‑in speakers?
Yes, the monitor includes stereo speakers rated at 2 W × 2.
