Start here

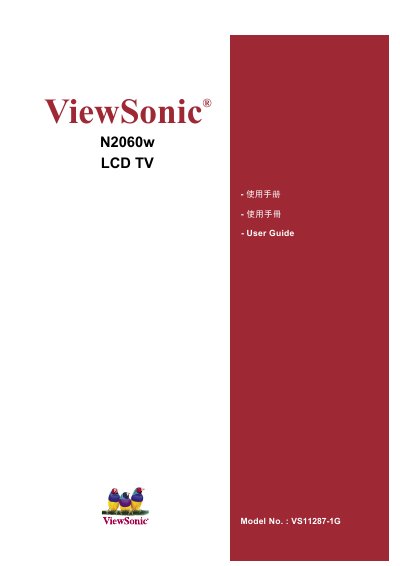

ViewSonic N2060w LCD TV User Manual
This manual covers important safety instructions, antenna installation, cleaning procedures, and how to connect external devices to the ViewSonic N2060w 20‑inch LCD TV. It also explains the control panel functions, remote control usage, menu navigation, and basic troubleshooting steps.
Additional sections provide detailed product specifications, warranty information, and customer support contacts, helping users maintain and service the television safely and effectively. This manual is written in Chinese.
ViewSonic N2060w specifications
| Display size | 20.1" Super MVA TFT |
|---|---|
| Resolution | 1366 × 768 |
| Brightness | 500 cd/m² (typ.) |
| Contrast ratio | 1000:1 (typ.) |
| Viewing angle | 176° horizontal, 176° vertical |
| Response time | 8 ms (grey‑to‑grey) |
| Audio output | 2 × 3 W SRS WOW speakers |
| Power consumption | < 90 W (max) |
| Power input | AC 100‑240 V, 50/60 Hz |
| Dimensions (with base) | 522 mm × 420 mm × 191 mm |
| Weight (with base) | 6.9 kg |
| HDMI input | 1 × HDMI (HDCP) |
| VESA mount pattern | 100 mm × 100 mm |
All ViewSonic N2060w documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the native resolution of the ViewSonic N2060w TV?
The TV has a native resolution of 1366 × 768 pixels.
Does the N2060w include HDMI with HDCP support?
Yes, it provides one HDMI input that supports HDCP.
What should I do if the TV has no power?
Check that the power cord is securely connected, the power button is on (blue light), and the outlet is supplying power. If the outlet is fine, try another device to verify the socket.
