Key facts
- Brand
- ViewSonic
- Model
- VP201mb
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2014-06-06
Start here

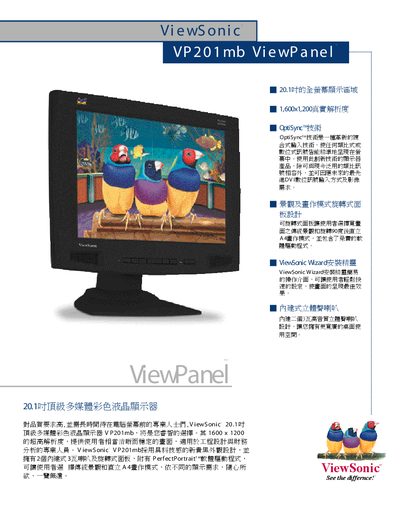

ViewSonic VP201mb ViewPanel Display User Manual
This manual covers the features and technical specifications of the ViewSonic VP201mb 20.1‑inch TFT display, including its 1600 × 1200 resolution, 280 nit brightness, and 170° viewing angles. It also describes the built‑in speakers, control functions, and connectivity options such as DVI and TMDS inputs.
Installation guidance, power requirements, and compliance information are provided, along with details on the adjustable stand, rotating panel, and optional accessories. Contact information for ViewSonic support is included at the end of the document. This manual is written in Chinese.
ViewSonic VP201mb specifications
| LCD Type | TFT active matrix |
|---|---|
| Display Area | 408mm x 306mm (20.1" diagonal) |
| Contrast Ratio | 300:1 (typ) |
| Viewing Angle | 160° horizontal, 160° vertical (typ) |
| Panel Surface | Anti-glare |
| Native Resolution | 1600 x 1200 |
| Speakers | Two 3.0W speakers |
| Power Consumption | 60W (typ), 70W (max) |
| Warranty | Three-year limited warranty |
All ViewSonic VP201mb documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the native resolution of the ViewSonic VP201m/VP201mb?
The monitor displays a native resolution of 1.9 megapixels, up to 1600 x 1200.
Does the monitor support digital input?
Yes, the multi-mode input technology supports both digital (DVI) and analog (VGA) signals.
What is the maximum resolution of the ViewSonic VP201mb?
The display supports a maximum resolution of 1600 × 1200 pixels.
What is the power consumption of the VP201mb at maximum load?
The maximum power consumption is 90 W.
