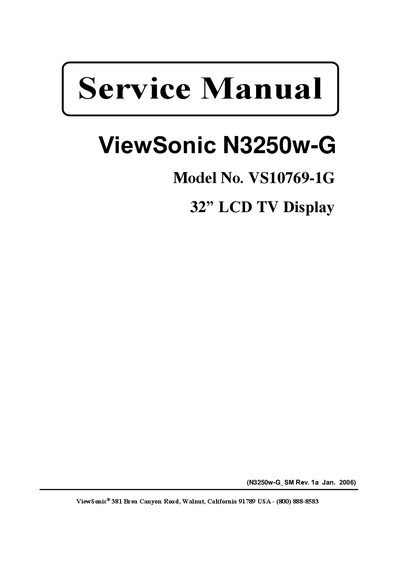

ViewSonic N3250w-G-1 32-inch LCD TV Display Service Manual, this manual details the disassembly, repair and maintenance of the TV display.
The Service Manual provides detailed safety notices, required service tools, and full product specifications for the ViewSonic N3250w-G 32" LCD TV display. It includes procedures for adjustment, packing, shipping, disassembly, and a comprehensive troubleshooting flow chart.
Additional sections contain exploded views, recommended spare parts, block and schematic diagrams, a working theorem, wiring diagram, and PCB layout diagrams to assist qualified technicians in repair and maintenance.
| LCD Panel | 32" TFT |
|---|---|
| Power Management (Off Mode) | <5W |
| Maximum Resolution | VESA 1280x1024 |
| Color Depth | 16.7M colors (8‑bit) |
| Contrast Ratio | 800:1 (typical) |
| Brightness | 500 cd/m² (typical) |
| Response Time | 8 ms (typical) |
| Operating Voltage | 100–240 V |
| Maximum Power Consumption | 200 W |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | -20 °C to +60 °C |
Required tools include a signal generator, multimeter, oscilloscope, screw driver, iron, absorber, solder, dummy load (5 A/200 W), and a DVD player.
The unit consumes up to 200 W at maximum load.
It supports a maximum VESA resolution of 1280 × 1024 pixels.
