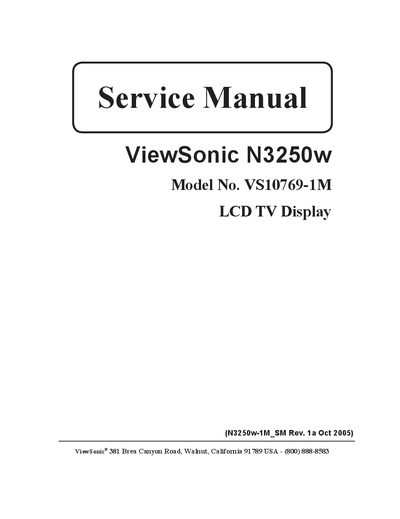

This manual introduces the use and maintenance methods of the ViewSonic N3250w display.
This Service Manual provides detailed information for servicing the ViewSonic N3250w LCD TV display (model VS10769-1M). It includes safety precautions, required tools, product specifications, exploded views, wiring diagrams, and troubleshooting procedures to help qualified technicians repair the unit safely.
The manual contains sections on specifications, block and schematic diagrams, connector pin assignments, parts lists, adjustment procedures, and an appendix with additional reference material. It is intended for use by service personnel and should not be used by end‑users for repairs.
| Maximum power consumption | 200 Watts (Max.) |
|---|---|
| Brightness | 500 cd/m’ (typical) |
| Input voltage range | 100~240 V |
The unit must not be opened by unqualified persons; use only the supplied power adapter, unplug before cleaning, and have a qualified technician perform repairs.
The display operates on an input voltage range of 100 to 240 V.
The unit consumes up to 200 Watts at maximum load.
