Key facts
- Brand
- ViewSonic
- Model
- VG2230wm
- Category
- Other Electronics
- Industry
- Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-03
Start here

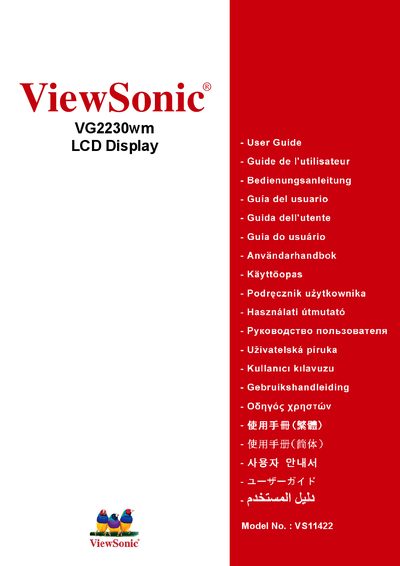

ViewSonic VG2230wm LCD Display User Guide
This user guide covers important safety instructions for installing and using the ViewSonic VG2230wm 22" LCD display, including handling, grounding, and environmental precautions. It also explains regulatory compliance such as FCC, TCO*03, ENERGY STAR, CE, and RoHS certifications.
The manual details the packaging contents, quick‑start installation steps, warranty terms (three‑year limited warranty), and recycling information for the display. Additional sections address troubleshooting, warranty claim procedures, and contact information for ViewSonic support.
ViewSonic VG2230wm specifications
| Panel type | CMO A220Z1 |
|---|---|
| Screen size | 22" |
| Contrast ratio | 700:1 |
| Colors | 116.2 million |
| Backlight life (typical) | 60,000 hours |
| Power supply | 100‑240 V AC, 50/60 Hz |
| Maximum power consumption | 43 W |
| Dimensions (W × H × D) | 519 mm × 436 mm × 250 mm |
Source: ViewSonic VG2230wm-1 VS11422 22 Color TFT LCD Display Service Manual
All ViewSonic VG2230wm documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety step should be taken before cleaning the display?
Turn off the product before cleaning.
From: ViewSonic VG2230wm-1 VS11422 22 Color TFT LCD Display Service Manual
How many colors can the VG2230wm-1 display show?
It supports 116.2 million colors.
From: ViewSonic VG2230wm-1 VS11422 22 Color TFT LCD Display Service Manual
What is the model number listed on the product?
The model number is VS11422.
