ViewSonic CINE5000 Manuals

ManualLib has 3 documents for the ViewSonic CINE5000: 2 user manuals. Every file can be read online or downloaded as a PDF for free.

User Manual 2

Key facts

Model
CINE5000
Documents
3
Languages
EN · ZH
Last added
2026-11-12

Start here

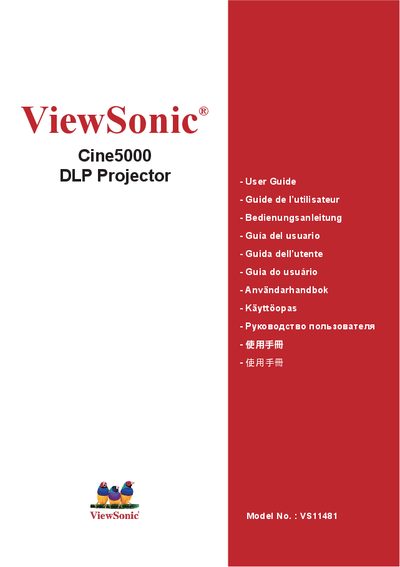

ViewSonic Cine5000 DLP Projector User Guide

ViewSonic Cine5000 DLP Projector User Guide

User Manual 19 pages · 1.4 MB · ZH

This guide covers safety precautions, installation, and basic operation of the ViewSonic Cine5000 DLP projector (model VS11481). It includes detailed instructions for powering the unit, connecting video sources, adjusting focus and zoom, and using the control panel and remote.

The manual also provides troubleshooting tips, lamp replacement procedures, cleaning instructions, and warranty details. Technical specifications such as lamp life, input compatibility, and built‑in speaker power are listed in the appendix. This manual is written in Chinese.

Read online

ViewSonic CINE5000 specifications

Projector type0.65-inch DarkChip2 Digital Micromirror Device (DLP)
Pixel format1280x768 (native resolution)
LensManual zoom/manual focus
Zoom factor1.2
KeystoneVertical ±16°, horizontal ±7°
Display size33–255 inches (diagonal)
Throw distance59–394 inches
Throw ratio1.74–2.09:1
Lamp250W, 2,000 hours*
Brightness1,000 ANSI lumens
Contrast ratio2000:1
Aspect ratio16:9 (native), 4:3
Color wheel6 segment (RGB RGB)
Projection methodFront, rear, ceiling
Video formatsNTSC 4.43, PAL, SECAM, HDTV (480i, 480p, 720p, 1080i)
FrequencyFh: 15–82 kHz; Fv: 50–85 Hz
PC compatibilityAnalog: from VGA up to SXGA (scaled)
Mac compatibilityAnalog: up to SXGA (may require a Mac adapter)
RGB inputDB-15 (x1)
HDMI inputHDMI (x1), HDCP compliant
Video inputRCA jack (x1)
S-Video inputMini-DIN 4-pin (x1)
Component video inputRCA jack (x3)
Screen relayDC power jack (12V)
Audio outputMini-Jack (x1)
Power voltage90–240 VAC, 50/60 Hz (universal)
Power consumption360W (typ)
Operating temperature41–95°F (5–35°C)
Operating humidity5–95% (non-condensing)
Noise level (normal)36 dB (max)
Noise level (whisper mode)35 dB (max)
Dimensions (mm)332.7 x 121.9 x 294.6 mm (W x H x D)
Dimensions (in.)13.1 x 4.8 x 11.6 inches
Net weight10 lb. (4.5 kg)
Gross weight16.5 lb. (7.5 kg)
RegulationsUL/C-UL, FCC-B, TUV, CB, CCC
Included contentsProjector, composite audio/video cable, S-video cable, RGB/DVI cable, power cable, remote control with batteries, Quick Start Guide, ViewSonic Wizard CD (with user guide), soft case
WarrantyThree-year limited warranty on parts and labor, first-year Express Exchange Service; 90-day limited warranty on lamp
Optional accessoriesRolling soft case and laptop bag (PRJ-SCA-004), replacement lamp (RLC-022), universal ceiling mount kit (WMK-005), extended Express Exchange (PRJ-EE-10-03), 1m/2m/3m HDMI cables (DS-QVS-HDMI-1M/2M/3M)

Source: ViewSonic Cine5000 Widescreen Home Theater Projector Product Leaflet

All ViewSonic CINE5000 documents by type

User Manual 2

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

What is the native resolution of the ViewSonic Cine5000?

The Cine5000 has a native resolution of 1280x768.

From: ViewSonic Cine5000 Widescreen Home Theater Projector Product Leaflet

What warranty does the Cine5000 include?

It includes a three-year limited warranty on parts and labor, first-year Express Exchange Service, and a 90-day limited warranty on the lamp.

From: ViewSonic Cine5000 Widescreen Home Theater Projector Product Leaflet

Can the projector be used with both NTSC and PAL video sources?

Yes, the projector supports NTSC, PAL, and SECAM video standards.

From: ViewSonic Cine5000 DLP Projector User Guide

What is the recommended method for cleaning the projector lens?

Use a soft dry cloth; if further cleaning is needed, follow the instructions in the “清潔投影” section of the manual.

From: ViewSonic Cine5000 DLP Projector User Guide

What projected image sizes does the projector support?

It supports a diagonal image size from 33" to 255".

From: ViewSonic Cine5000 DLP Projector User Guide

Can the user replace the lamp?

Yes, the guide states that the lamp is easily replaceable by the user and includes a section on replacing the lamp.

From: ViewSonic Cine5000 DLP Projector User Guide
