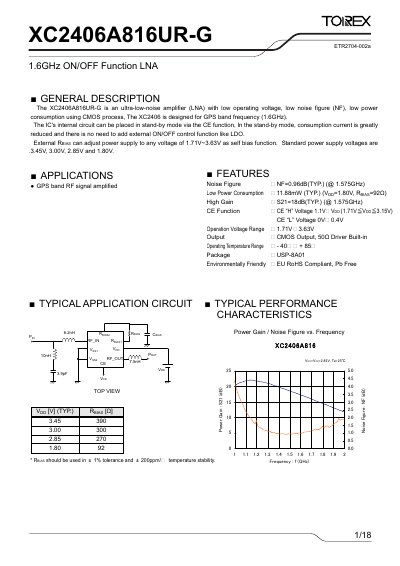

XC2406A816UR-G is an ultra-low-noise amplifier (LNA) with low operating voltage, low noise figure (NF), low power consumption using CMOS process. The XC2406 is designed for GPS band frequency (1.6GHz). The IC's internal circuit can be placed in stand-by mode via the CE function. In the stand-by mode, consumption current is greatly reduced and there is no need to add external ON/OFF control function like LDO. External RBIAS can adjust power supply to any voltage of 1.71V~3.63V as self bias function. Standard power supply voltages are 3.45V, 3.00V, 2.85V and 1.80V.
The XC2406A816UR-G is an ultra‑low‑noise amplifier (LNA) designed for the GPS band (1.6 GHz). It features a CE control pin that allows the IC to enter a low‑power standby mode without external ON/OFF circuitry. The device operates from 1.71 V to 3.63 V and is supplied in a RoHS‑compliant USP‑8A01 package.
Key specifications include a typical noise figure of 0.96 dB at 1.575 GHz, a power gain of 18 dB, and a typical power consumption of 11.88 mW at 1.80 V. The standby current is as low as 0.1 µA, and the maximum power dissipation is 120 mW. The LNA provides CMOS 50 Ω output, built‑in ESD protection, and operates over –40 °C to +85 °C.
| Noise Figure (typical) | 0.96 dB @ 1.575 GHz |
|---|---|
| Power Gain (typical) | 18 dB @ 1.575 GHz |
| Operating Voltage Range | 1.71 V ≤ VDD ≤ 3.63 V |
| CE "H" Voltage Level | 1.1 V |
| Maximum Power Dissipation | 120 mW |
The typical noise figure is 0.96 dB at 1.575 GHz.
It operates from 1.71 V up to 3.63 V.
