Start here

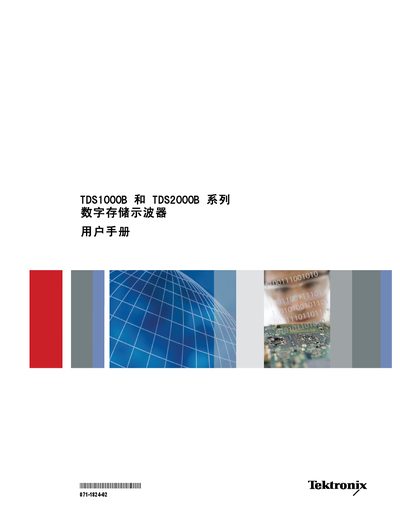

Tektronix TDS1000B/TDS2000B Series Digital Oscilloscope User Manual
This manual provides safety guidelines, installation instructions, and detailed operating procedures for the Tektronix TDS1000B and TDS2000B series digital storage oscilloscopes. It includes information on probe safety, basic controls, menu navigation, and advanced measurement functions such as FFT, cursor measurements, and waveform analysis.
The document also contains technical specifications, warranty information, and appendices covering probe data, cleaning, maintenance, default settings, and licensing. Users can reference the index to locate topics such as vertical control, trigger settings, and USB connectivity.
Tektronix TDS2000B series specifications
| Maximum Input Voltage (CAT I / CAT II) | 300 V RMS |
|---|---|
| Maximum Input Voltage (CAT III) | 150 V RMS |
| Input Coupling | DC, AC, or Ground |
| Input Impedance (DC Coupling) | 1 MΩ ±2% in parallel with 20 pF ±3 pF |
| Sampling Rate per Channel | Up to 180 MSa/s |
| Vertical Resolution | 8 bits |
| Probe Attenuation Options | 1X, 10X, 20X, 50X, 100X, 500X, 1000X |
Source: Tektronix TDS1000B/TDS2000B Series Digital Oscilloscope User Manual
All Tektronix TDS2000B series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Tektronix TDS1000B/TDS2000B Series Digital Oscilloscope User Manual 147 p
- Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope User Manual 8 p
- Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope Manual 8 p
- Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope User Manual 8 p
Questions answered in these manuals
What is the input impedance of the oscilloscope when using DC coupling?
The input impedance is 1 MΩ ±2% in parallel with 20 pF ±3 pF.
From: Tektronix TDS1000B/TDS2000B Series Digital Oscilloscope User Manual
What bandwidth options are available for the TDS1000B and TDS2000B series?
The series offers bandwidths of 40 MHz, 60 MHz, 100 MHz, and 200 MHz.
From: Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope User Manual
How many channels does each model have?
Models are available with either 2 channels or 4 channels.
From: Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope User Manual
What advanced trigger types are available?
The scopes support pulse‑width (or glitch) triggering, video line triggering, and selectable edge triggering with various coupling options.
From: Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope Manual
What are the standard accessories for the series?
Standard accessories include the P2220 passive probe, power cable, calibration certificate, and optional OpenChoice® PC software.
From: Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope Manual
