Key facts
- Brand
- Tektronix
- Model
- TLA700
- Category
- Other Electronics
- Industry
- Electronics
- Documents
- 3
- Languages
- ZH
- Last added
- 2000-01-01
Start here

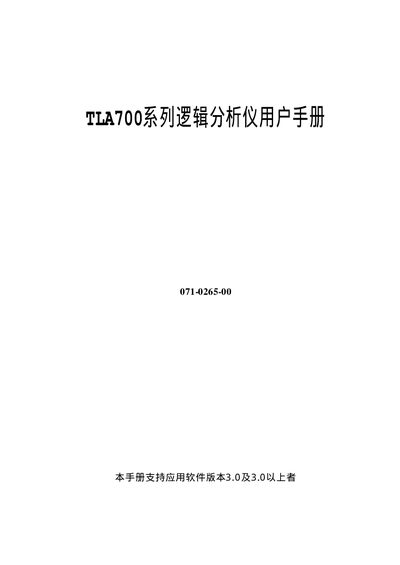

Tektronix TLA700 Series Logic Analyzer User Manual
This manual introduces the TLA700 series logic analyzer, covering safety warnings, required accessories and basic concepts. It explains how to install the hardware, connect probes, and configure the software on supported Windows platforms.
Detailed sections describe data acquisition, trigger configuration, waveform display, and maintenance procedures. The document also lists part numbers, warranty information and contact details for technical support. This manual is written in Chinese.
Tektronix TLA700 specifications
| Maximum power consumption (TLA7012) | 750 W |
|---|---|
| Maximum power consumption (TLA7016) | 1.450 W |
| Maximum analysis channels (TLA7016) | 6,528 |
| Operating temperature range | +5°C to +45°C |
| Operating altitude range | -1,000 ft to 10,000 ft |
| Safety certifications | UL3111-1, CSA1010.1, EN61010-1, IEC61010-1 |
All Tektronix TLA700 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the part number for the TLA700 logic analyzer?
The part number is 070‑97740XX.
What is the maximum power consumption of the TLA7012?
The TLA7012 consumes up to 750 W of power.
How many analysis channels does the TLA7016 support?
The TLA7016 supports up to 6,528 analysis channels.
Can a single probe capture both analog and digital signals?
Yes, the TLA series probe can acquire both analog and digital measurements with one probe.
From: Tektronix TLA5000/TLA7000 Series Logic Analyzer Selection Guide
