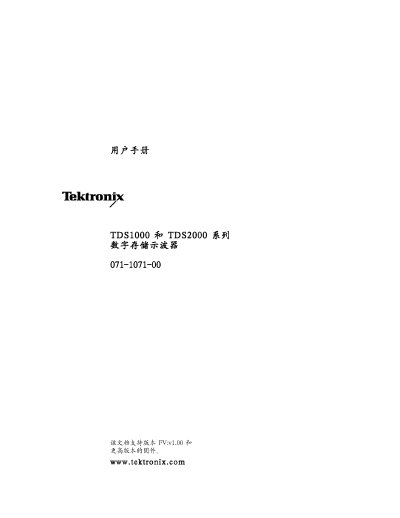

Tektronix TDS1000/TDS2000 Series Digital Storage Oscilloscope User Manual
This manual provides detailed instructions for operating the TDS1000 and TDS2000 series digital storage oscilloscopes. It includes sections on basic operation, menu navigation, trigger control, measurement functions, and advanced features such as FFT and communication module setup.
The document also contains safety information, probe handling guidelines, self‑calibration procedures, and warranty details. It supports firmware versions FV:v1.00 and higher and is intended for users of both series models. This manual is written in Chinese.
Tektronix TDS1000 specifications
| Maximum acquisition rate | 180 waveforms per second per channel (typical) |
|---|---|
| Input coupling | DC, AC, or GND |
| Input impedance | 1 MΩ ± 2 % in parallel with 20 pF ± 3 pF |
| Probe attenuation options | 1×, 10×, 20×, 50×, 100×, 500×, 1000× |
| Vertical bandwidth | Up to 40 MHz (model‑dependent) |
Source: Tektronix TDS1000B-SC Series Digital Oscilloscope User Manual
All Tektronix TDS1000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Tektronix TDS1000/TDS2000 Series Digital Storage Oscilloscope User Manual 206 p
- Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope User Manual 8 p
- Tektronix TDS1000B-SC Series Digital Oscilloscope User Manual 181 p
- Tektronix TDS1000B/2000B Series Digital Storage Oscilloscope User Manual 186 p
- Tektronix TDS1000B-SC Series Digital Storage Oscilloscope User Manual 8 p
- Tektronix TDS1000B/TDS2000B Digital Storage Oscilloscope User Manual 189 p
Questions answered in these manuals
What firmware versions does this manual support?
The manual supports firmware version FV:v1.00 and later.
From: Tektronix TDS1000/TDS2000 Series Digital Storage Oscilloscope User Manual
How long is the warranty for the TDS1000/TDS2000 series?
Tektronix provides a three‑year warranty from the date of shipment.
From: Tektronix TDS1000/TDS2000 Series Digital Storage Oscilloscope User Manual
What is the warranty period for the TDS1000B-SC series oscilloscope?
The oscilloscope is covered by a three‑year warranty against material and workmanship defects when purchased from an authorized Tektronix distributor.
From: Tektronix TDS1000B-SC Series Digital Oscilloscope User Manual
When should the oscilloscope be self‑calibrated?
Self‑calibration is required after a temperature change greater than 5 °C or after the instrument has operated continuously for 20 minutes at the specified operating temperature.
From: Tektronix TDS1000B-SC Series Digital Oscilloscope User Manual
What safety steps should be taken before connecting probes?
Before connecting a probe to the circuit, first connect the probe’s output to the measurement instrument, then attach the probe’s ground lead to the circuit before connecting the probe’s input.
From: Tektronix TDS1000B/2000B Series Digital Storage Oscilloscope User Manual
What is the maximum bandwidth of the TDS1000B‑SC series?
The series is available with bandwidths of 40 MHz, 60 MHz, or 100 MHz depending on the model.
From: Tektronix TDS1000B-SC Series Digital Storage Oscilloscope User Manual
