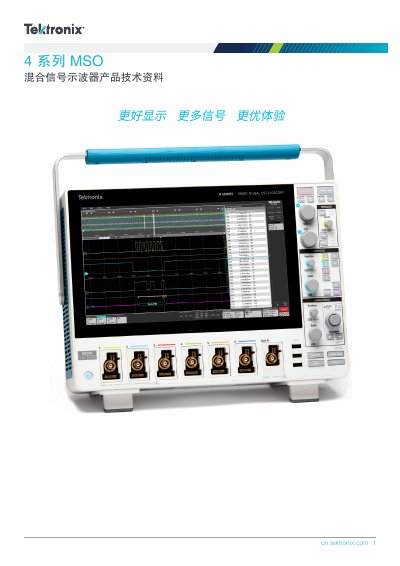

Tektronix 4 Series MSO Mixed Signal Oscilloscope Product Data Sheet
This document provides technical specifications for the Tektronix 4 Series MSO mixed signal oscilloscope. It highlights key features such as FlexChannel inputs, which allow each channel to function as an analog signal input or up to eight digital logic inputs using TLP058 probes. The oscilloscope offers bandwidths ranging from 200 MHz to 1.5 GHz and a sampling rate of 6.25 GS/s. This manual is written in Chinese.
Read onlineTektronix 4 Series MSO specifications
| Input Channels | 4 or 6 FlexChannel inputs |
|---|---|
| Bandwidth | 200 MHz to 1.5 GHz |
| Sampling Rate | 6.25 GS/s |
| Record Length | 31.25 M points (62.5 M points optional) |
| Vertical Resolution | 12-bit ADC (up to 16-bit in High Resolution mode) |
| Display | 13.3-inch TFT color HD |
| Warranty | 3 years |
Source: Tektronix 4 Series MSO Mixed Signal Oscilloscope Product Data Sheet
All Tektronix 4 Series MSO documents by type
Questions answered in these manuals
What is the maximum bandwidth of the 4 Series MSO?
The maximum bandwidth is 1.5 GHz, with an option to upgrade to higher frequencies.
From: Tektronix 4 Series MSO Mixed Signal Oscilloscope Product Data Sheet
How many digital logic inputs can be supported?
Up to 48 digital logic inputs can be supported using multiple TLP058 probes.
From: Tektronix 4 Series MSO Mixed Signal Oscilloscope Product Data Sheet
How many input channels does the 4 Series MSO provide?
It offers models with either four or six FlexChannel® input channels.
What is the maximum bandwidth available for the 4 Series MSO?
The instrument can be upgraded to a maximum analog bandwidth of 1.5 GHz.
