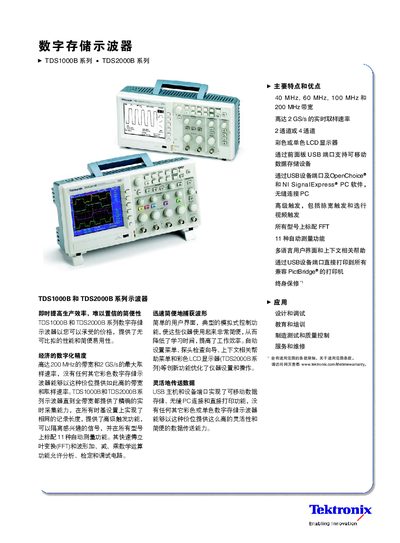

The TDS1000B and TDS2000B series oscilloscopes are high-performance, easy-to-use digital storage oscilloscopes with bandwidths up to 200MHz and maximum sampling rates of 2GS/s. They offer 2 or 4 channels, color or monochrome LCD displays, support for removable data storage devices, seamless connectivity to PCs via a USB device port and OpenChoice® and NI SignalExpress® PC software, advanced triggering including pulse width and selected line video triggering, FFT on all models, 11 automated measurement functions, multilingual user interfaces and context-sensitive help, and direct printing to all PictBridge®-compatible printers via a USB device port.
This manual describes the TDS1000B and TDS2000B series digital storage oscilloscopes, covering their main features, applications, and ordering information. It is intended for users who need to set up, operate, and maintain the instruments.
Key topics include advanced triggering, USB data transfer, auto‑setup menus, display options, physical dimensions, safety specifications, and available service options. The document also lists standard accessories and warranty details. This manual is written in Chinese.
| Bandwidth | up to 200 MHz |
|---|---|
| Sample Rate | up to 2 GS/s |
| Channels | 2 or 4 channels |
| Display | color LCD (1/4 VGA) for TDS2000B series |
| Vertical Resolution | 8 bits |
| Input Voltage | 300 V RMS CAT II |
| USB Interface | 2 × USB 2.0 ports (host & device) |
| Operating Temperature | 0 °C to +50 °C |
The scopes support pulse‑width (or glitch) triggering, video line triggering, and selectable edge triggering with various coupling options.
Standard accessories include the P2220 passive probe, power cable, calibration certificate, and optional OpenChoice® PC software.
