Key facts
- Brand
- Tektronix
- Model
- TDS1000B
- Documents
- 7
- Languages
- EN · ZH
- Last added
- 2012-03-09
Start here

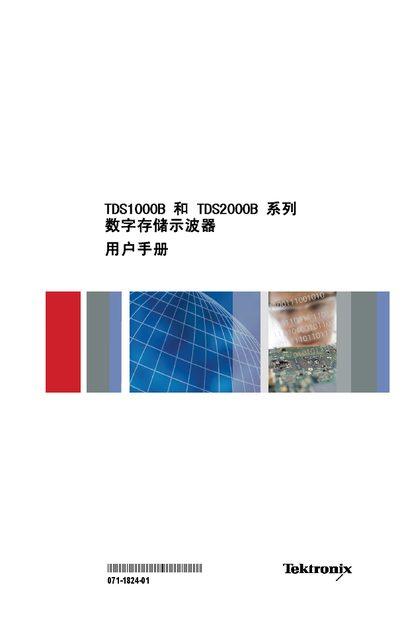

Tektronix TDS1000B/TDS2000B Digital Storage Oscilloscope User Manual
This manual describes the features, controls, and operation of the Tektronix TDS1000B and TDS2000B series digital storage oscilloscopes. It includes safety information, hardware specifications, and usage instructions.
The document also covers interface options such as USB and GPIB, as well as troubleshooting guidance and service information for technicians.
Tektronix TDS1000B specifications
| Maximum Input Voltage (CAT I / CAT II) | 300 V RMS |
|---|---|
| Maximum Input Voltage (CAT III) | 150 V RMS |
| Input Coupling | DC, AC, or Ground |
| Input Impedance (DC Coupling) | 1 MΩ ±2% in parallel with 20 pF ±3 pF |
| Sampling Rate per Channel | Up to 180 MSa/s |
| Vertical Resolution | 8 bits |
| Probe Attenuation Options | 1X, 10X, 20X, 50X, 100X, 500X, 1000X |
Source: Tektronix TDS1000B/TDS2000B Series Digital Oscilloscope User Manual
All Tektronix TDS1000B documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Tektronix TDS1000B/TDS2000B Series Digital Oscilloscope User Manual 147 p
- Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope User Manual 8 p
- Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope Manual 8 p
- Tektronix TDS1000B series TDS2000B series digital storage Show Wave Implement Manual
- Tektronix TDS1000B/2000B Series Digital Storage Oscilloscope User Manual 186 p
- Tektronix TDS1000B seriesTDS2000B series digital storage Show Wave Implement Manual
- Tektronix TDS1000B/TDS2000B Digital Storage Oscilloscope User Manual 189 p
Questions answered in these manuals
What is the input impedance of the oscilloscope when using DC coupling?
The input impedance is 1 MΩ ±2% in parallel with 20 pF ±3 pF.
From: Tektronix TDS1000B/TDS2000B Series Digital Oscilloscope User Manual
What bandwidth options are available for the TDS1000B and TDS2000B series?
The series offers bandwidths of 40 MHz, 60 MHz, 100 MHz, and 200 MHz.
From: Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope User Manual
How many channels does each model have?
Models are available with either 2 channels or 4 channels.
From: Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope User Manual
What advanced trigger types are available?
The scopes support pulse‑width (or glitch) triggering, video line triggering, and selectable edge triggering with various coupling options.
From: Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope Manual
What are the standard accessories for the series?
Standard accessories include the P2220 passive probe, power cable, calibration certificate, and optional OpenChoice® PC software.
From: Tektronix TDS1000B and TDS2000B Series Digital Storage Oscilloscope Manual
What safety steps should be taken before connecting probes?
Before connecting a probe to the circuit, first connect the probe’s output to the measurement instrument, then attach the probe’s ground lead to the circuit before connecting the probe’s input.
From: Tektronix TDS1000B/2000B Series Digital Storage Oscilloscope User Manual
