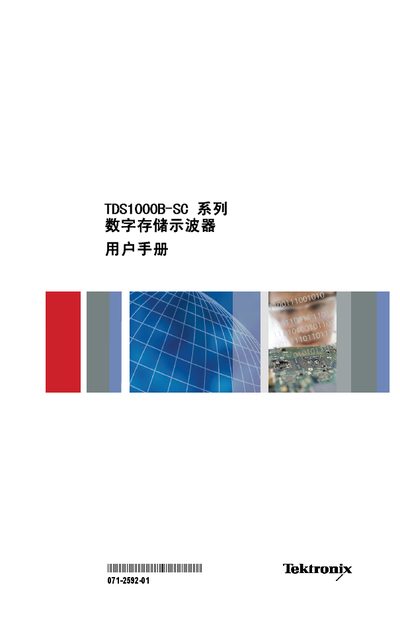

Tektronix TDS1000B-SC Series Digital Oscilloscope User Manual
This manual provides safety guidelines, warranty information, and basic handling instructions for the TDS1000B-SC series digital storage oscilloscope. It explains required power‑cord specifications, grounding, and proper probe connections to prevent injury and equipment damage.
The document also describes the oscilloscope’s functional features, including acquisition modes, trigger controls, menu navigation, probe compensation, and self‑calibration procedures. Detailed technical specifications for the instrument and the optional P2220 probe are listed in the appendices.
Tektronix TDS1000B-SC specifications
| Maximum acquisition rate | 180 waveforms per second per channel (typical) |
|---|---|
| Input coupling | DC, AC, or GND |
| Input impedance | 1 MΩ ± 2 % in parallel with 20 pF ± 3 pF |
| Probe attenuation options | 1×, 10×, 20×, 50×, 100×, 500×, 1000× |
| Vertical bandwidth | Up to 40 MHz (model‑dependent) |
Source: Tektronix TDS1000B-SC Series Digital Oscilloscope User Manual
All Tektronix TDS1000B-SC documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the warranty period for the TDS1000B-SC series oscilloscope?
The oscilloscope is covered by a three‑year warranty against material and workmanship defects when purchased from an authorized Tektronix distributor.
From: Tektronix TDS1000B-SC Series Digital Oscilloscope User Manual
When should the oscilloscope be self‑calibrated?
Self‑calibration is required after a temperature change greater than 5 °C or after the instrument has operated continuously for 20 minutes at the specified operating temperature.
From: Tektronix TDS1000B-SC Series Digital Oscilloscope User Manual
What is the maximum bandwidth of the TDS1000B‑SC series?
The series is available with bandwidths of 40 MHz, 60 MHz, or 100 MHz depending on the model.
From: Tektronix TDS1000B-SC Series Digital Storage Oscilloscope User Manual
How many channels does each TDS1000B‑SC oscilloscope have?
Each instrument provides two input channels.
From: Tektronix TDS1000B-SC Series Digital Storage Oscilloscope User Manual
