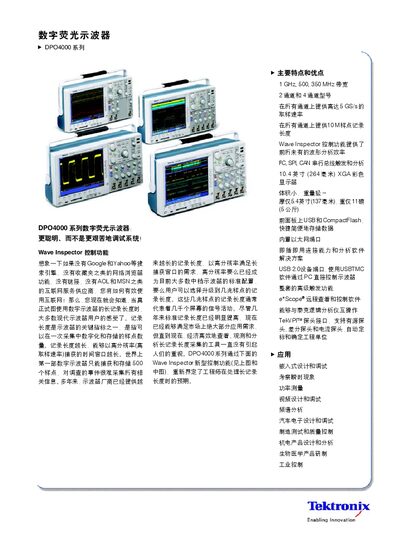

Tektronix DPO4000 Series Digital Phosphor Oscilloscope Data Sheet
The DPO4000 series digital phosphor oscilloscopes from Tektronix provide bandwidths from 350 MHz up to 1 GHz, with 2‑ or 4‑channel configurations and sampling rates up to 5 GS/s. They feature a 10.4‑inch XGA color display, extensive Wave Inspector control functions, and built‑in Ethernet, USB and CompactFlash ports for easy data transfer and remote control.
The instruments support serial bus trigger and analysis for I2C, SPI and CAN, include advanced triggering, search and marker capabilities, and come with a range of optional accessories such as active probes, differential probes and software packages like OpenChoice® Desktop and National Instruments SignalExpress. This manual is written in Chinese.
Tektronix DPO4000 specifications
| Bandwidth | 350 MHz – 1 GHz |
|---|---|
| Channels | 2‑channel and 4‑channel models |
| Maximum Sampling Rate | 5 GS/s |
| Record Length | 10 M samples |
| Display Size | 10.4‑inch (264 mm) XGA color LCD |
| Input Impedance | 1 MΩ ± 1 % (or 50 Ω ± 1 %) |
| Power Consumption | 250 W max |
| Operating Temperature | 0 °C to +50 °C |
