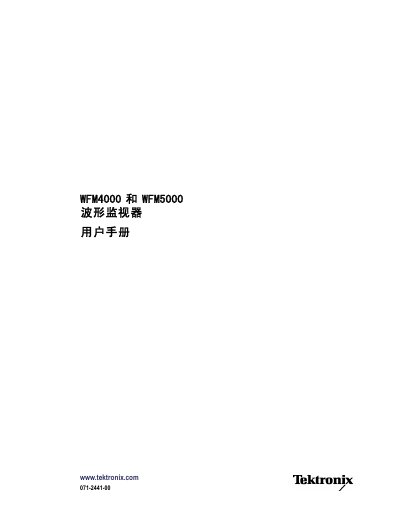

Tektronix WFM4000 / WFM5000 Waveform Monitor User Manual
This manual covers the installation, basic operation and main features of the Tektronix WFM4000 and WFM5000 waveform monitors, which are used to monitor SD‑SDI or HD‑SDI video signals. It includes detailed safety guidelines, environmental considerations, and instructions for connecting power, SDI inputs and optional accessories.
The document also describes how to configure display parameters, select signal inputs, use presets, monitor audio, set up alarms, and upgrade the instrument software. Reference sections such as the index and online help make it easy to locate specific procedures. This manual is written in Chinese.
Tektronix WFM5000 specifications
| AC Power Frequency | 50 Hz or 60 Hz |
|---|---|
| AC Input Voltage | 100‑240 V |
| Typical Power Consumption | 22 W |
| DC Power Options | 12 V DC input or 14.4 V camera battery |
| Line Termination Part Number | 011-0163-XX |
