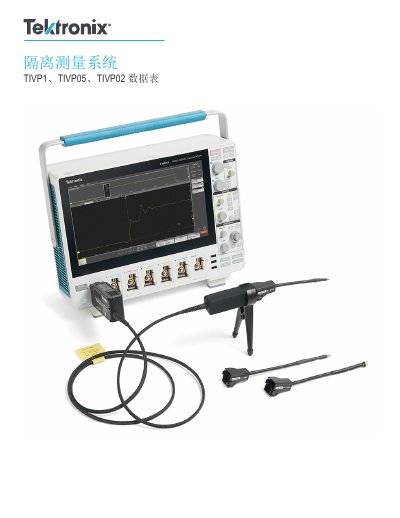

Tektronix TIVP1, TIVP05, TIVP02 IsoVu Isolated Probe Datasheet
This datasheet describes the Tektronix IsoVu isolated measurement system, specifically the TIVP1, TIVP05, and TIVP02 probe models. These second-generation probes utilize IsoVu Gen 2 design, offering a compact size with high bandwidth (up to 1 GHz), high dynamic range, and high common-mode rejection. They are designed for measuring wide-bandgap semiconductor devices like SiC and GaN in power converters and motor drives.
Read onlineAll Tektronix TIVP1, TIVP05, TIVP02 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum common-mode voltage range for the IsoVu probes?
The probes support a common-mode voltage range of ±60 kV.
From: Tektronix TIVP1, TIVP05, TIVP02 IsoVu Isolated Probe Datasheet
What is the maximum differential input voltage range for the IsoVu probes?
The probes offer a differential input voltage range of ±2500 V.
From: Tektronix TIVP1, TIVP05, TIVP02 IsoVu Isolated Probe Datasheet
What is the maximum common-mode voltage range for the IsoVu measurement system?
The system supports a common-mode voltage range of ±60 kV.
From: Tektronix IsoVu TIVP1, TIVP05, TIVP02 Isolated Measurement System Datasheet
What is the maximum differential input voltage range for the IsoVu probes?
The probes provide a differential input voltage range of ±2500 V.
From: Tektronix IsoVu TIVP1, TIVP05, TIVP02 Isolated Measurement System Datasheet
