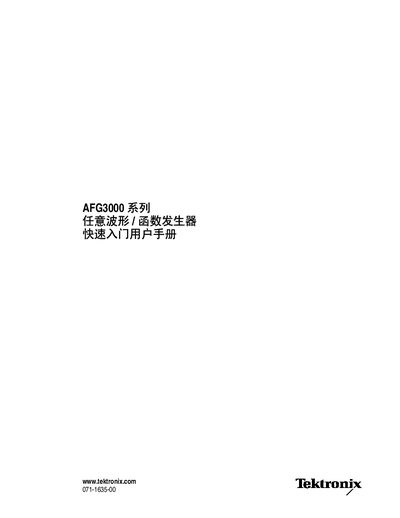

Tektronix AFG3000 Series Arbitrary Waveform/Function Generator Quick Start Guide
The manual introduces the Tektronix AFG3000 Series arbitrary waveform/function generator, covering safety rules, installation steps, front‑panel overview, and basic operation. It also explains how to use the Utility menu for firmware updates, network connection, and accessing built‑in help.
The guide includes a quick tutorial for generating common waveforms, detailed specifications such as frequency range, sampling rate, resolution, and power consumption, and a reference index for all menu items and connectors.
Tektronix AFG3000 specifications
| Sampling Rate | 250 MS/s to 2 GS/s |
|---|---|
| Waveform Types | Sine, Square, Pulse, Ramp, Sawtooth, Sin(x)/x, Noise, DC, Gaussian, Lorentzian, Exponential Rise/Decay, Semi-Circular |
| Wavelength Range | 2 to 131,072 points |
| Sine Wave Frequency Range | 1 μHz to 25 MHz (AFG3021B/AFG3022B) |
| Square Wave Frequency Range | 1 μHz to 12.5 MHz (AFG3021B/AFG3022B) |
| Pulse Wave Frequency Range | 1 mHz to 12.5 MHz (AFG3021B/AFG3022B) |
| Arbitrary Waveform Frequency Range | 21 mHz to 12.5 MHz (AFG3021B/AFG3022B) |
Source: Tektronix AFG3000 Series Arbitrary/Function Generator Quick Start User Manual
All Tektronix AFG3000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What is the warranty period for the Tektronix AFG3000 Series?
The product is warranted against materials and workmanship defects for three (3) years from the date of original purchase from an authorized Tektronix distributor.
From: Tektronix AFG3000 Series Arbitrary/Function Generator Quick Start User Manual
Can the instrument be operated in a humid environment?
No, the instrument should not be operated in a humid environment to avoid potential damage or safety hazards.
From: Tektronix AFG3000 Series Arbitrary/Function Generator Quick Start User Manual
What safety precautions should be taken before using the AFG3000 series?
Use a proper power cord, ensure the instrument is grounded, and follow the general safety rules such as not operating with the cover open.
From: Tektronix AFG3000 Series Arbitrary Waveform/Function Generator Quick Start Guide
How can I update the firmware of the AFG3000 series?
Select the Firmware Update option in the Utility menu and follow the on‑screen instructions.
From: Tektronix AFG3000 Series Arbitrary Waveform/Function Generator Quick Start Guide
How long does the warm‑up time take?
The typical warm‑up time is at least 20 minutes.
From: Tektronix AFG3000 Series Arbitrary Waveform/Function Generator Quick Start Guide
What are the operating temperature limits?
The instrument operates from 0 °C to +50 °C and can be stored from –30 °C to +70 °C.
From: Tektronix AFG3000 Series Arbitrary Waveform/Function Generator Quick Start Guide
