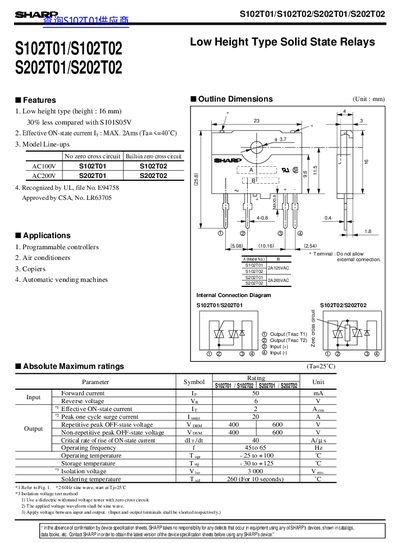

Sharp S102T01/S102T02/S202T01/S202T02 Solid State Relay Data Sheet
The Sharp S102T01, S102T02, S202T01 and S202T02 are low‑height solid‑state relays (height 16 mm) designed for compact installations. They offer a maximum ON‑state current of 2 A and are available in 100 V and 200 V versions with optional zero‑cross detection.
The relays are UL and CSA certified and are intended for use in programmable controllers, air‑conditioners, copiers and automatic vending machines. Detailed electrical ratings, isolation test methods and electro‑optical characteristics are provided in the sheet.
Sharp S102T02 specifications
| Height | 16 mm |
|---|---|
| Maximum ON‑state current | 2 A |
| Input Forward current | 50 mA |
| Reverse voltage | 6 V |
| Peak one‑cycle surge current | 20 A |
| Isolation voltage | 3000 Vrms |
| Operating temperature range | -25 °C to +100 °C |
Source: Sharp S102T01/S102T02/S202T01/S202T02 Solid State Relay Data Sheet
All Sharp S102T02 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the height of the Sharp solid‑state relays?
The relays have a low‑height design of 16 mm.
From: Sharp S102T01/S102T02/S202T01/S202T02 Solid State Relay Data Sheet
What is the maximum ON‑state current rating?
The maximum ON‑state current is 2 A.
From: Sharp S102T01/S102T02/S202T01/S202T02 Solid State Relay Data Sheet
What is the maximum output current of the S102T02/S202T02 SSRs?
The relays are rated for an output current of less than 2.0 A RMS.
From: Sharp S102T02 / S202T02 Series Solid State Relay Datasheet
How much isolation voltage do these relays provide?
They provide 3.0 kV RMS isolation between input and output.
From: Sharp S102T02 / S202T02 Series Solid State Relay Datasheet
