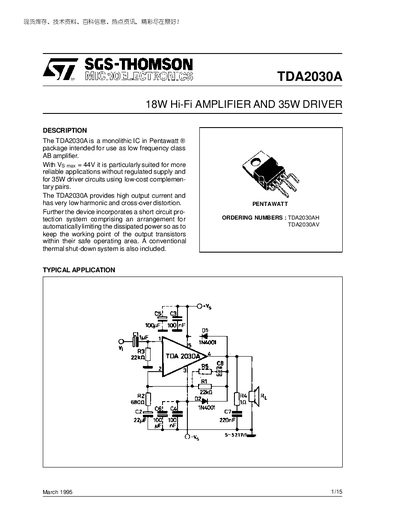

The TDA2030A is a 18W Hi-Fi amplifier and 35W driver, suitable for low frequency class AB amplifier. It provides high output current and very low harmonic and cross-over distortion. It also has a short circuit protection system, which includes an arrangement for automatically limiting the dissipated power so as to keep the working point of the output transistors within their safe operating area. A conventional thermal shut-down system is also included.
The TDA2030A is a monolithic audio power amplifier IC in a Pentawatt package, designed for low‑frequency class‑AB operation with a maximum supply voltage of 44 V. It offers high output current, low harmonic distortion, and built‑in short‑circuit and thermal shutdown protection, making it suitable for reliable 18 W Hi‑Fi and 35 W driver applications.
The document lists absolute maximum ratings, detailed electrical characteristics, thermal data, mechanical dimensions, and typical performance curves. It also includes example circuit layouts, pin connections, and application notes for single‑supply and bridge amplifier configurations.
| Maximum Supply Voltage (Vs) | +22 V |
|---|---|
| Peak Output Current (limited) | 3.5 A |
| Total Power Dissipation (90 °C) | 20 W |
| Quiescent Drain Current (typical) | 80 mA |
| Input Offset Voltage | +2 to +20 mV |
| Thermal Shutdown Junction Temperature | 145 °C |
| Package Dimensions (A) | 4.8 mm |
The maximum supply voltage is +22 V.
At a 36 V supply the typical output power is 35 W.
The thermal shutdown junction temperature is 145 °C.
It is housed in a Pentawatt package.
