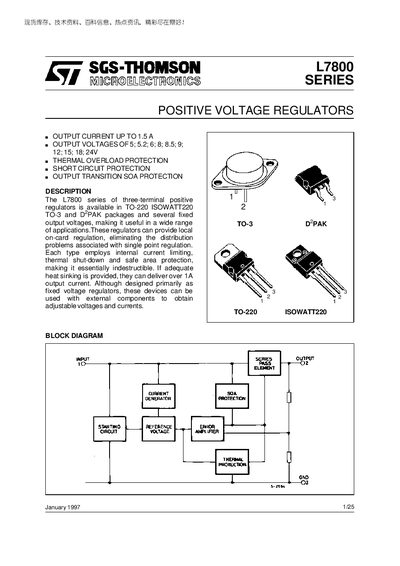

The L7800 series of positive voltage regulators features high output current and multiple output voltage options, making it suitable for a wide range of applications. They have internal current limiting, thermal shutdown, and safe area protection, making them essentially indestructible. They can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Additionally, they can be used with external components to achieve adjustable voltages and currents.
The L7800 series are three‑terminal positive voltage regulators offered in TO‑220, ISOWATT220, TO‑3 and DPAK packages. They provide fixed output voltages from 5 V to 24 V and include internal current limiting, thermal shutdown and safe‑area protection, making them suitable for on‑card regulation and a wide range of applications.
The document lists absolute maximum ratings, thermal characteristics, electrical specifications for each voltage version (L7805, L7806, L7808, etc.), mechanical dimensions for the DPAK package, and ordering information. Legal notices and copyright details are included at the end of the 25‑page publication.
