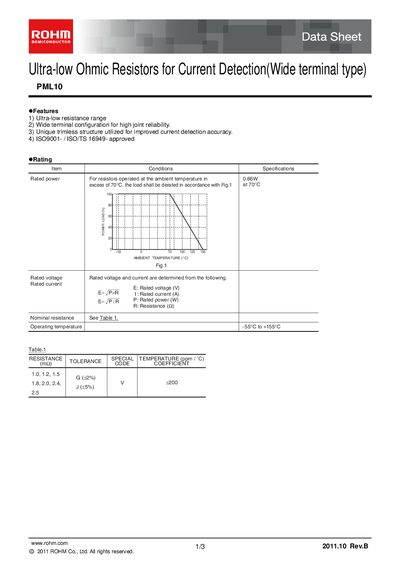

This document is a technical manual for PML10, introduces the features, performance, specifications and other information of PML10
The PML10 series are ultra‑low resistance, wide‑terminal resistors designed for high joint reliability and accurate current detection. Key features include a trim‑less structure, ISO/TS 16949 approval, and a resistance range from 1 Ω to 2.5 Ω with tolerance codes G (42 %) and J (45 %).
The datasheet details electrical ratings such as a 0.66 W rated power at 70 °C, an operating temperature range of –55 °C to +155 °C, and packaging options like a 4 mm‑pitch reel containing 5,000 units. Material construction uses a Ni‑Cr alloy resistive element with copper primary electrodes and a black resin overcoat.
| Operating temperature | –55 °C to +155 °C |
|---|---|
| Resistive element material | Ni‑Cr alloy |
It can operate from –55 °C up to +155 °C.
The tolerance codes are G for 42 % and J for 45 % tolerance.
