Key facts
- Brand
- Panasonic
- Model
- CT-13R19C
- Category
- Television
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-06
Start here

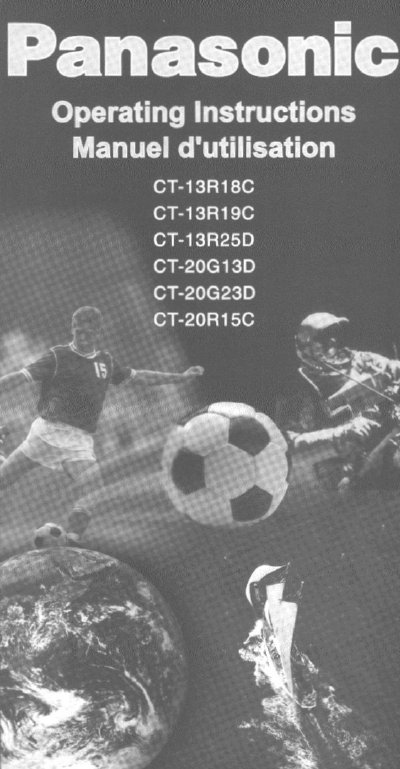

Panasonic CT-13R18C/CT-13R19C/CT-13R25D/CT-20G13D/CT-20G23D/CT-20R15C TV Monitor Operating Instructions
User Manual 12 pages · 827 KB · EN
This manual provides operating instructions for the Panasonic CT-13R18C, CT-13R19C, CT-13R25D, CT-20G13D, CT-20G23D, and CT-20R15C TV Monitor/Receiver. It includes safety precautions, care and cleaning guidelines, and detailed installation steps for connecting power, cable, and antennas.
Read onlinePanasonic CT-13R19C specifications
| Power Source | 120 V a-c. or 420V AC, 60Hz |
|---|---|
| Channel Capability | VHF-12; UHF-56 |
| Video Input Jacks | 1Vp-p, 75 Ohm |
| Audio Input Jacks | 500mV RMS |
All Panasonic CT-13R19C documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Panasonic CT-13R18C/CT-13R19C/CT-13R25D/CT-20G13D/CT-20G23D/CT-20R15C TV Monitor Operating Instructions 12 p
- Panasonic CT-Z2146L/CT0Z2136X/CT-Z2136/CT-Z2126L/CT-Z2116X/CT-Z2116/CT-Z1426L/CT-Z1416X/CT-Z1416/CT-G2166L/CT-G2156/CT-20R15X/CT-20R15/CT-20G33/CT-20G23/CT-20G13X/CT-20G13/CT-20G3/CT-13R19/CT-13R18/CT 11 p
Questions answered in these manuals
Where can I find the model and serial number?
The model and serial number may be found on the back of the unit.
What type of cables should be used for connections?
Shielded audio and video cables, specifically 75-ohm coaxial shielded cables, should be used.
What type of cable is recommended for best results?
Shielded audio and video cables should be used, specifically 75-ohm coaxial shielded cables.
How do I adjust audio between the TV speakers and an external amplifier?
Press the TV SPEAKERS ON button, set both volumes to desired levels, then press TV SPEAKERS OFF.
