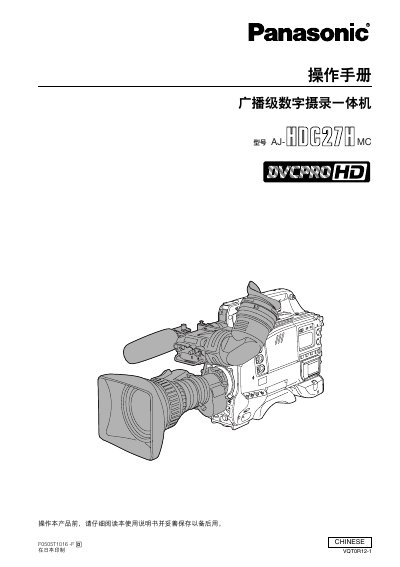

Panasonic AJ-HDC27H Broadcast Digital Camcorder Operation Manual
The Panasonic AJ-HDC27H is a broadcast-grade all-in-one digital video camera that integrates an HD color camera with a DVCPRO HD format VTR. It supports SMPTE-296M 1280 x 720 scanning standards, offering high sensitivity (equivalent to ISO 640) and a frame rate range from 4 fps to 60 fps. The unit features variable frame rates for special effects like drop-frame and speed-up shooting, as well as film tone grayscale functions with three selectable curves. This manual is written in Chinese.
Read onlinePanasonic AJ-HDC27H specifications
| Sensitivity | 2000 lx (F11) |
|---|---|
| Frame rate range | 4 fps to 60 fps |
| Signal‑to‑noise ratio | 54 dB (standard) |
| ADC resolution | 12‑bit |
| Recording rate | 100 Mbps |
Source: Panasonic AJ-HDC27HP Manual
All Panasonic AJ-HDC27H documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I connect the unit to an external AC power source?
Connect the AC adapter (model AJ‑B75) to the DC IN (XLR, 4‑pin) socket on the rear of the unit.
What scanning standard does the AJ-HDC27H support?
It supports the SMPTE-296M 1280 x 720 scanning standard.
From: Panasonic AJ-HDC27H Broadcast Digital Camcorder Operation Manual
What is the sensitivity of the camera unit?
The sensitivity is 2000 lux at F12 in 24P mode with shutter speed set to 50% of frame rate.
From: Panasonic AJ-HDC27H Broadcast Digital Camcorder Operation Manual
