Key facts
- Brand
- Panasonic
- Model
- TC-20LA2
- Category
- Television
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-08-06
Start here

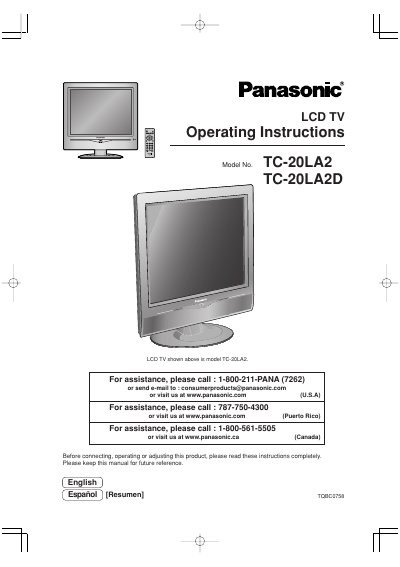

Panasonic TC-20LA2/TC-20LA2D Manual
This manual provides operating instructions for the Panasonic TC-20LA2 and TC-20LA2D LCD televisions. It includes important safety information regarding electrical shock, ventilation requirements, and proper use of power cords and antennas. The document also details how to install batteries in the remote control and adjust the viewing angle of the stand.
Read onlinePanasonic TC-20LA2 specifications
| Power consumption (average use) | 67 W |
|---|---|
| Power consumption (standby) | 0.5 W |
| Input voltage | 220‑240 V, 50/60 Hz |
| Screen size | 50 cm, 4:3 aspect, 640 × 480 px |
| Dimensions (W × H) | 401 mm × 299 mm |
| Relative humidity | ≤ 90 % (no condensation) |
All Panasonic TC-20LA2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
Can I use liquid or aerosol cleaners on the LCD TV?
No, you should only clean it with a dry cloth and unplug it from the wall outlet before cleaning.
How much space is required around the ventilation openings?
There should be at least 10 cm of space from these openings to ensure reliable operation.
What leakage test should be performed after repair?
Measure the resistance between exposed metal parts and ground; the reading should be between 1 MΩ and 5 MΩ.
What is the standby power consumption?
The standby power consumption is 0.5 W.
