Key facts
- Brand
- Panasonic
- Model
- KX-TS3282W
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-06
Start here

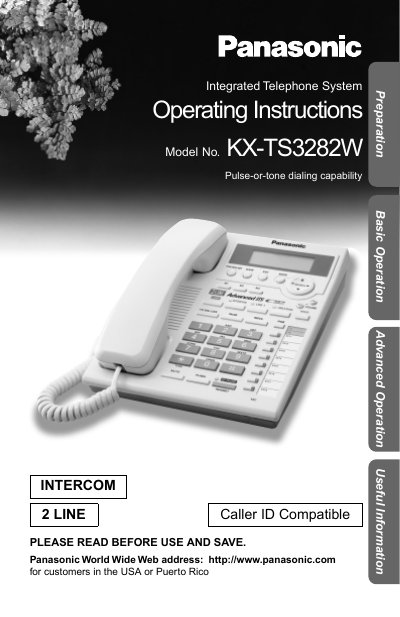

Panasonic KX-TS3282W Integrated Telephone System Operating Instructions
This document provides operating instructions for the Panasonic KX-TS3282W Integrated Telephone System. It details the location of controls, installation procedures including handset connection and line cord setup, and battery installation. The guide explains how to configure programmable settings such as time, date, extension numbers, dialing modes, ringer volume, and patterns.
Read onlinePanasonic KX-TS3282W specifications
| Power Supply | AC adaptor (120 V AC, 60 Hz) |
|---|---|
| Battery Type | Three "AA" size Manganese (R6, UM-3) batteries |
| Power Consumption (Standby) | Approx. 1 W |
| Dimensions | Approx. 96 mm x 186 mm x 231 mm |
| Weight | Approx. 890 g (1.94 lb.) |
| Dialing Mode | Tone (DTMF)/Pulse |
Source: Panasonic KX-TS3282W Integrated Telephone System Operating Instructions
All Panasonic KX-TS3282W documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of batteries are required for this telephone?
The unit requires three "AA" size Manganese (R6, UM-3) batteries.
From: Panasonic KX-TS3282W Integrated Telephone System Operating Instructions
What is the operating temperature range?
The unit operates in an environment between 5 °C and 40 °C.
From: Panasonic KX-TS3282W Integrated Telephone System Operating Instructions
Where is the handset cradle located?
The handset cradle is located on the left side of the face of the unit.
From: Panasonic KX-TS3282W Integrated Telephone System Control Panel Layout Description
What are the functions of the Navigator control keys?
The 12 and 6 o'clock positions are UP and DOWN keys, while the 3 and 9 o'clock positions are right and left arrow keys.
From: Panasonic KX-TS3282W Integrated Telephone System Control Panel Layout Description
